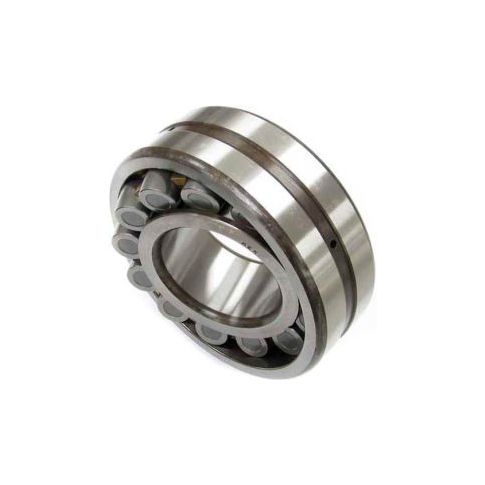

NACHI Double Row Spherical Roller Bearing 23932AXW33C3, 160MM Bore, 220MM OD
NACHI Features
NACHI Features
- NACHI spherical roller bearings can sustain both heavy radial and axial loads in either direction
- Deflection of shaft, housing, or misalignment of axes can be automatically corrected by self-aligning feature which prevents the application of excessive force
- NACHI's newly developed heat stabilization process can sustain normal function in operating temperatures of up to 200°C (392°F) with minimal dimensional changes and no reduction of bearing life
- Maximum permissible misalignment angle is approximately 2° under general service conditions
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS160
- OUTER DIAMETER MILLIMETERS220
- WIDTH MILLIMETERS45
- DYNAMIC LOAD RATING (N)475,000
- STATIC LOAD RATING (N)649,000
- MANUFACTURER PART NUMBER23932AXW33C3
- MAX SPEED / OIL (RPM)2800
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 11.60
Product info last updated on May 4, 2024 4:48pm UTC
Category: Bearings
