NACHI Single Row Cylindrical Roller Bearing N224C3 120MM Bore 215MM OD N224C3
NACHI Single Row Cylindrical Roller Bearing N224C3 120MM Bore 215MM OD N224C3
This item is NOT returnable.

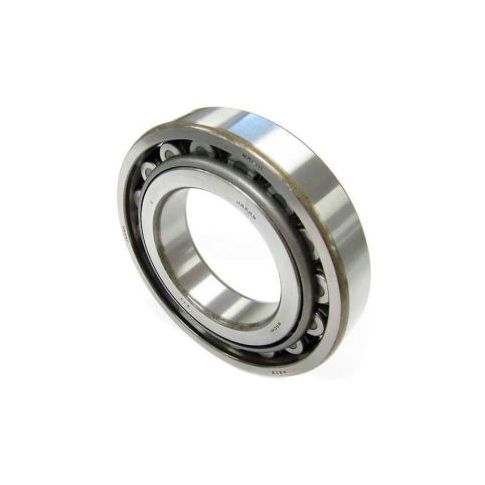

NACHI Single Row Cylindrical Roller Bearing N224C3, 120MM Bore, 215MM OD
NACHI Features
NACHI Features
- Cylindrical Roller Bearings have a high radial load capacity and are suitable for high speeds
- The application of these bearings are intended to come in linear contact with raceways
- Inner or outer rings are separable for easy mounting and dismounting
- "N" and "NU" type can be used as free-end bearings since they have no ribs on either inner or outer ring
- "N" and "NU" rings can move axially relative to one another
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS120
- OUTER DIAMETER MILLIMETERS215
- WIDTH MILLIMETERS40
- DYNAMIC LOAD RATING (N)260000
- STATIC LOAD RATING (N)320000
- MANUFACTURER PART NUMBERN224C3
- MAX SPEED / OIL (RPM)3400
- RETAINERPressed Steel
- RADIAL CLEARANCEC3
- SERIESN200
- TOLERANCEISO Class 0
- MAX SPEED / GREASE (RPM)3000
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 14.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
