Nachi Radial Ball Bearing 6200nr Open W/Snap Ring 10mm Bore 30mm Od 6200NR
Nachi Radial Ball Bearing 6200nr Open W/Snap Ring 10mm Bore 30mm Od 6200NR

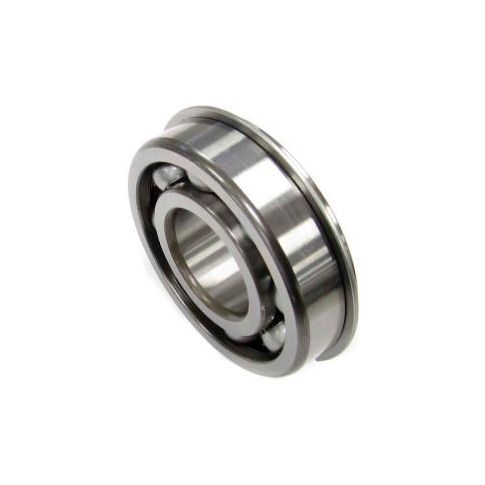

NACHI Radial Ball Bearing 6200NR, Open W/Snap Ring, 10MM Bore, 30MM OD
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Product Specifications
- BRANDNachi
- WIDTH MILLIMETERS9
- DYNAMIC LOAD RATING (N)5,100
- STATIC LOAD RATING (N)2,390
- RADIAL CLEARANCEC3
- BEARING TYPEOpen W/Snap Ring
- SERIES6200
- TOLERANCEISO Class 0
- DESCRIPTIONRadial Ball Bearing
- MANUFACTURERS PART NUMBER6200NR
- MAX SPEED / GREASE (RPM)25,000
- OD (mm)30
- BORE (mm)10
Additional Information
- UNSPSC: 31171504
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.07
Product info last updated on May 4, 2024 8:00pm UTC
Category: Bearings
