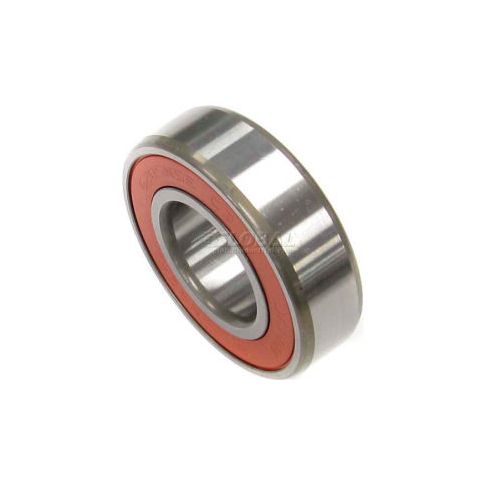

Nachi Radial Ball Bearing 6307-2rs Double Sealed 35mm Bore 80mm Od 6307-2NSE9C3
Nachi Radial Ball Bearing 6307-2rs Double Sealed 35mm Bore 80mm Od 6307-2NSE9C3
NACHI Radial Ball Bearing 6307-2RS, Double Sealed, 35MM Bore, 80MM OD
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Product Specifications
- BRANDNachi
- WIDTH MILLIMETERS21
- DYNAMIC LOAD RATING (N)33,500
- STATIC LOAD RATING (N)19,200
- BEARING TYPEDouble Sealed
- RADIAL CLEARANCEC3
- SERIES6300
- TOLERANCEISO Class 0
- DESCRIPTIONRadial Ball Bearing
- MANUFACTURERS PART NUMBER6307-2RS
- MAX SPEED / GREASE (RPM)6,000
- OD (mm)80
- BORE (mm)35
Additional Information
- UNSPSC: 31171504
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 1.01
Product info last updated on May 4, 2024 8:00pm UTC
Category: Bearings
