Nachi Radial Ball Bearing 6009zznr Double Shielded W/Snap Ring 45mm Bore 75mm Od 6009ZZENR
Nachi Radial Ball Bearing 6009zznr Double Shielded W/Snap Ring 45mm Bore 75mm Od 6009ZZENR

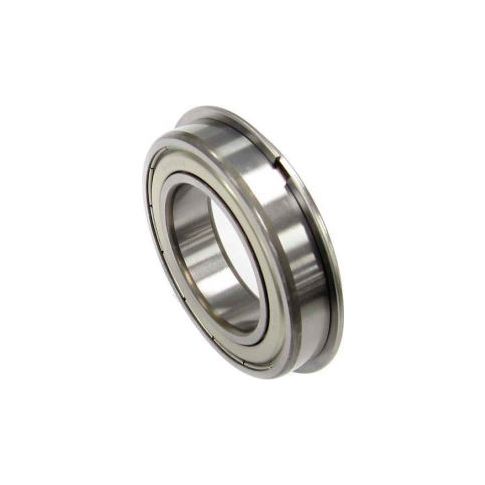

NACHI Radial Ball Bearing 6009ZZNR, Double Shielded W/Snap Ring, 45MM Bore, 75MM OD
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Radial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.
Product Specifications
- BRANDNachi
- WIDTH MILLIMETERS16
- DYNAMIC LOAD RATING (N)20,900
- STATIC LOAD RATING (N)15,200
- RADIAL CLEARANCEC3
- BEARING TYPEDouble Shielded W/Snap Ring
- SERIES6000
- TOLERANCEISO Class 0
- DESCRIPTIONRadial Ball Bearing
- MANUFACTURERS PART NUMBER6009ZZNR
- MAX SPEED / GREASE (RPM)9,200
- OD (mm)75
- BORE (mm)45
Additional Information
- UNSPSC: 31171504
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.54
Product info last updated on September 23, 2024 2:48pm UTC
Category: Bearings
