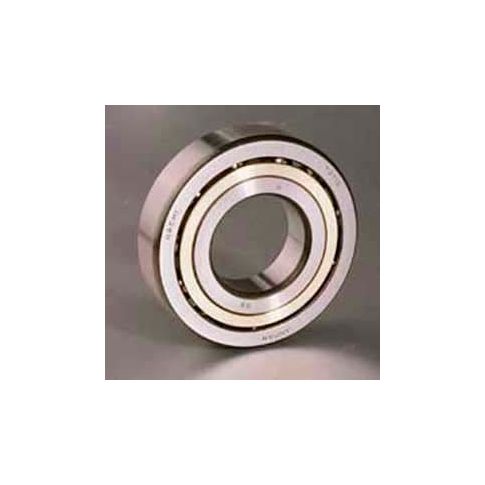

Nachi 7204BMUC3 Angular Contact Ball Bearing Flush Ground 20MM Bore x 47MM OD x 14MM W 7204BMUC3
Nachi 7204BMUC3 Angular Contact Ball Bearing Flush Ground 20MM Bore x 47MM OD x 14MM W 7204BMUC3
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS20
- OUTER DIAMETER MILLIMETERS47
- WIDTH MILLIMETERS14
- CAGE TYPEMachined Brass
- MANUFACTURER PART NUMBER7204BMUC3
- MAX SPEED (RPM) OIL DUPLEX14,000
- STATIC LOAD RATING (N) SINGLE 7,700
- CONTACT ANGLE40°
- DYNAMIC LOAD RATING (N) DUPLEX21,600
- DYNAMIC LOAD RATING (N) SINGLE13,300
- RADIAL CLEARANCEC3
- SERIES7200
- TOLERANCEISO Class 0
- MAX SPEED (RPM) / OIL SINGLE17,000
- MANUFACTURERS PART NUMBER7204BMUC3
- STATIC LOAD RATING (N) DUPLEX15,400
- OD (mm)47
- BORE (mm)20
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.24
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
