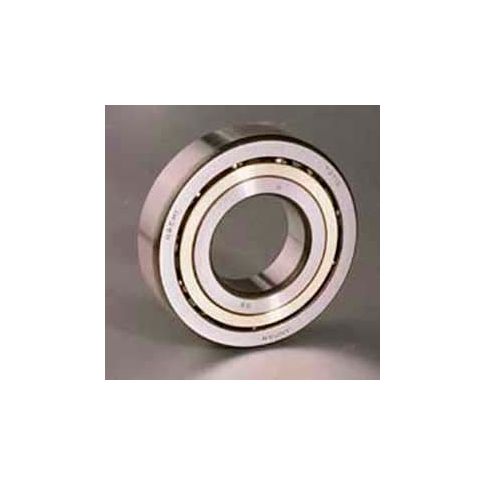

Nachi 7317BMUC3 Angular Contact Ball Bearing Flush Ground 85MM Bore x 180MM OD x 41MM W 7317BMUC3
Nachi 7317BMUC3 Angular Contact Ball Bearing Flush Ground 85MM Bore x 180MM OD x 41MM W 7317BMUC3
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS85
- OUTER DIAMETER MILLIMETERS180
- WIDTH MILLIMETERS41
- CAGE TYPEMachined Brass
- MANUFACTURER PART NUMBER7317BMUC3
- MAX SPEED (RPM) OIL DUPLEX3,500
- STATIC LOAD RATING (N) SINGLE 112,000
- CONTACT ANGLE40°
- DYNAMIC LOAD RATING (N) DUPLEX223,000
- DYNAMIC LOAD RATING (N) SINGLE137,000
- RADIAL CLEARANCEC3
- SERIES7200
- TOLERANCEISO Class 0
- MAX SPEED (RPM) / OIL SINGLE4,400
- MANUFACTURERS PART NUMBER7317BMUC3
- STATIC LOAD RATING (N) DUPLEX223,000
- OD (mm)180
- BORE (mm)85
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 10.80
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
