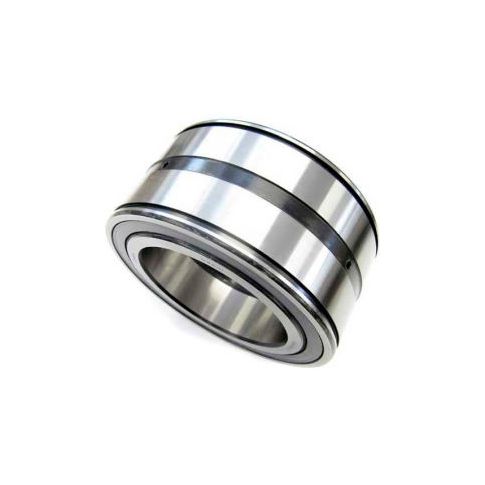

NACHI Double Sealed Sheave Bearing E5026XW33NNTS1, Less Snap Rings & Coating, 130MM Bore, 200MM OD
Features
Features
- NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
- Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
- If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
- Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
- Operating temperature range is -30° to 80°C (-35° to 175°F)
Product Specifications
- BRANDNachi
- BEARING STYLEWithout Snap Rings & Coating
- BORE DIAMETER MILLIMETERS130
- OUTER DIAMETER MILLIMETERS200
- DYNAMIC LOAD RATING (N)535,000
- CAGE TYPENone
- MANUFACTURER PART NUMBERE5026XW33NNTS1
- INNER WIDTH MILLIMETERS95
- OUTER WIDTH MILLIMETERS94
- OIL HOLES/GROOVE ON OUTTER RINGInner & Outer Rings
- AXIAL LIMITING LOAD (N)1,000,000
- SNAP GROOVE D1 (mm)196.0
- RADIAL CLEARANCE0.065 to 0.130 mm
- TOLERANCEISO Normal
- SNAP GROOVE Cg (mm)83.2
- SNAP GROOVE B (mm)4.2
- MAX SPEED / GREASE (RPM)750
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 3.70
- Package Width: 3.70
- Package Height: 7.87
- Package Weight: 23.15
Product info last updated on May 14, 2024 6:18pm UTC
Category: Bearings
