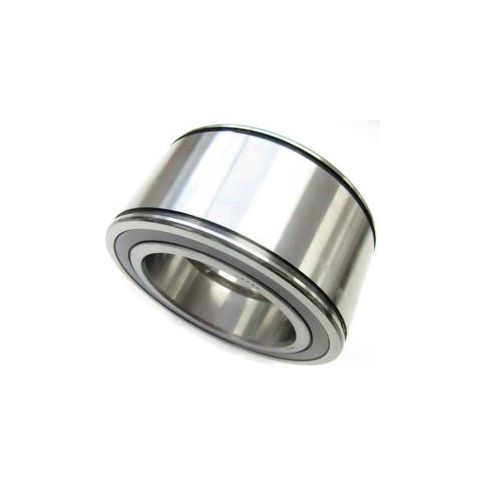

NACHI Double Sealed Sheave Bearing E5008XNNTS1, Without Snap Rings & Coating, 40MM Bore, 68MM OD
Features
Features
- NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
- Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
- If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
- Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
- Operating temperature range is -30° to 80°C (-35° to 175°F)
Product Specifications
- BRANDNachi
- BEARING STYLEWithout Snap Rings & Coating
- BORE DIAMETER MILLIMETERS40
- OUTER DIAMETER MILLIMETERS68
- DYNAMIC LOAD RATING (N)79,000
- CAGE TYPENone
- MANUFACTURER PART NUMBERE5008XNNTS1
- INNER WIDTH MILLIMETERS38
- OUTER WIDTH MILLIMETERS37
- OIL HOLES/GROOVE ON OUTTER RINGInner Ring
- AXIAL LIMITING LOAD (N)125,000
- SNAP GROOVE D1 (mm)65.8
- RADIAL CLEARANCE0.035 to 0.070 mm
- TOLERANCEISO Normal
- SNAP GROOVE Cg (mm)32.2
- SNAP GROOVE B (mm)2.7
- MAX SPEED / GREASE (RPM)2,500
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.45
- Package Width: 1.45
- Package Height: 2.60
- Package Weight: 1.20
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
