NACHI Double Sealed Sheave Bearing E5017XNNTS1 Without Snap Rings & Coating 85MM Bore 130MM OD E5017XNNTS1
NACHI Double Sealed Sheave Bearing E5017XNNTS1 Without Snap Rings & Coating 85MM Bore 130MM OD E5017XNNTS1

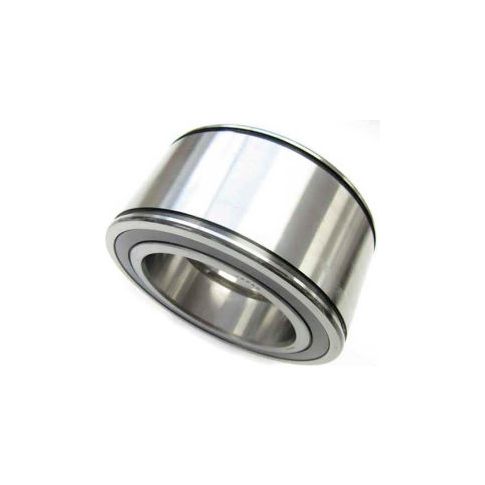

NACHI Double Sealed Sheave Bearing E5017XNNTS1, Without Snap Rings & Coating, 85MM Bore, 130MM OD
Features
Features
- NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
- Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
- If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
- Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
- Operating temperature range is -30° to 80°C (-35° to 175°F)
Product Specifications
- BRANDNachi
- BEARING STYLEWithout Snap Rings & Coating
- BORE DIAMETER MILLIMETERS85
- OUTER DIAMETER MILLIMETERS130
- DYNAMIC LOAD RATING (N)255,000
- CAGE TYPENone
- MANUFACTURER PART NUMBERE5017XNNTS1
- INNER WIDTH MILLIMETERS60
- OUTER WIDTH MILLIMETERS59
- OIL HOLES/GROOVE ON OUTTER RINGInner Ring
- AXIAL LIMITING LOAD (N)445,000
- SNAP GROOVE D1 (mm)127.1
- RADIAL CLEARANCE0.065 to 0.115 mm
- TOLERANCEISO Normal
- SNAP GROOVE Cg (mm)54.2
- SNAP GROOVE B (mm)4.2
- MAX SPEED / GREASE (RPM)1,150
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 2.32
- Package Width: 2.32
- Package Height: 5.11
- Package Weight: 6.17
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
