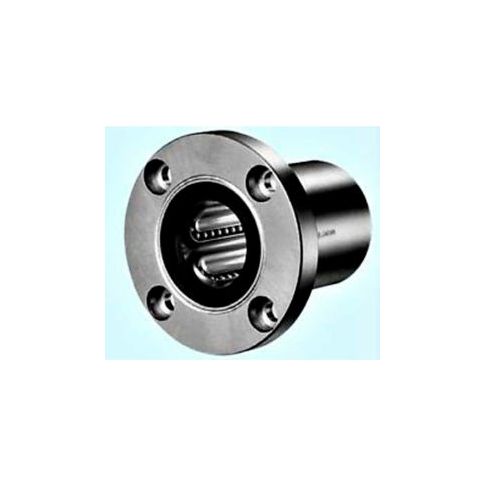

NB Corp SWF4G 1/4" ID Round Flange Type Linear Bearing W/Resin Retainer Steel SWF4G
NB Corp SWF4G 1/4"" ID Round Flange Type Linear Bearing W/Resin Retainer Steel SWF4G
NB Corp SWF4G 1/4" ID Round Flange Type Linear Bearing W/Resin Retainer, Steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
Product Specifications
- STATIC LOAD LBS.59.57
- MANUFACTURER PART NUMBERSWF4G
- BRANDNB Corporation
- MATERIALSteel
- DR TOLERANCE0-0.0004"
- D0.5"
- t.2187"
- NUMBER OF BALL CIRCUITS4
- DYNAMIC LOAD LBS.46.31
- DR0.25"
- X x Y x Z.1563" x .250" x .1410"
- FLANGE P.C.D..875"
- DESCRIPTIONRound Flange Type Linear Bearing W/Resin Retainer
- Df1.25"
- D TOLERANCE0-0.0005"
- ID1/4
- L.75
Additional Information
- UNSPSC: 31171506
- Brand: NB Corporation Of America
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.07
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
