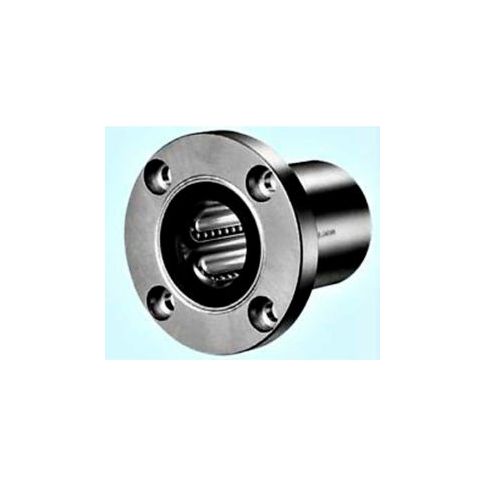

NB Corp SWF20G 1-1/4" ID Round Flange Type Linear Bearing W/Resin Retainer Steel SWF20G
NB Corp SWF20G 1-1/4"" ID Round Flange Type Linear Bearing W/Resin Retainer Steel SWF20G
NB Corp SWF20G 1-1/4" ID Round Flange Type Linear Bearing W/Resin Retainer, Steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
Product Specifications
- STATIC LOAD LBS.615.97
- MANUFACTURER PART NUMBERSWF20G
- BRANDNB Corporation
- MATERIALSteel
- DR TOLERANCE0-0.0005"
- D2"
- DYNAMIC LOAD LBS.352.95
- t.375"
- NUMBER OF BALL CIRCUITS6
- X x Y x Z.2812" x .4060" x .2656"
- DR1.25"
- FLANGE P.C.D.2.5625"
- Df3.125"
- DESCRIPTIONRound Flange Type Linear Bearing W/Resin Retainer
- D TOLERANCE0-0.0009"
- ID1-1/4
- L2.625
Additional Information
- UNSPSC: 31171506
- Brand: NB Corporation Of America
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 2.88
- Package Width: 3.38
- Package Height: 3.38
- Package Weight: 1.47
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
