Power Door Operator 120VAC Pull Side MPN:5710 XRF1 X 690

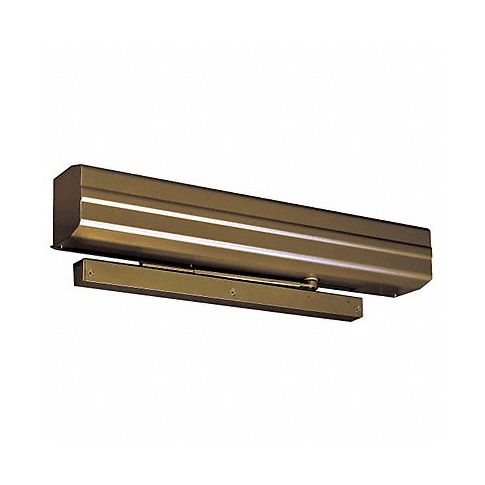

Power Door Operator 120VAC Pull Side
The NORTON® 5700 Series powered door operator functions as a standard spring-force closer during close cycles, when door opened manually, or if power is lost or turned off. Hold-open time is adjustable from 0 to 30 sec. If door is obstructed, motor stops and the door closes with standard closer. This low-energy operator includes 2 radio-frequency wall switched powered by 9V batteries, 6" x 6" face plates with Americans with Disabilities (ADA) logo, and built-in 1.1A power supply. Connect to wall outlet. Ideal for doctors' offices, retirement facilities, schools, churches, and other applications where noise may be a concern. Nonhanded.
Technical Specifications
- Closer Brand Norton
- Item Powered Door Operator
- Closer Series Norton 5711
- Interior/Exterior Interior and Exterior
- Automatic/Manual Automatic
- Hydraulic/Pneumatic Hydraulic
- Closer Performance Heavy Duty
- Closer Type Electronically Controlled
- Hand Orientation Non-Handed
- Ligature Resistant No
- Closer Mounting Style Regular
- Standards ANSI A156.19, A165.4 Grade 1, UL and cUL Listed
- ADA Compliant Yes
- Finish Dark Bronze Painted
- Arm Material Aluminum/Steel
- Arm Type Hinge (Pull) Side, Slide Track
- Color Dark Bronze
- Exterior Door Width 48 in
- Housing Height 5-1/4 in
- Housing Length 29 in
- Housing Depth 4 5/8 in
- Includes Radio Frequency Wall Switches (2)
- Interior Door Width 54 in
- Max. Door Opening 180 Degrees
- Projection from Wall 4 5/8 in
- Spring Size Adjustable 1 to 6
Manufacturer Details
- Manufacturer: Norton
- Condensed Mfg Number: 5710XRF1X690
- MPN: 5710 XRF1 X 690
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Door Closers
- GDS Family Name: Door Hardware
- GDS Segment Name: Hardware
- UNSPSC: 30171514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Doors
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Door closers
- UNSPSC Family ID: 17
- UNSPSC Family Name: Doors and windows and glass
- UNSPSC Segment ID: 30
- UNSPSC Segment Name: Structures and Building and Construction and Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 5:46am UTC
Category: Door Hardware
