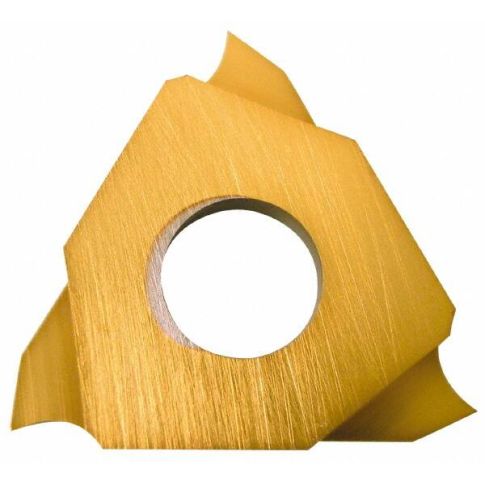

Grooving Insert: GTMH32075U ZM3, Solid Carbide MPN:5995907
Grooving Insert: GTMH32075U ZM3, Solid Carbide
Grooving Insert: GTMH32075U ZM3, Solid Carbide TiN Finish, Right Hand, 0.75 mm Cutting Width, 1.6 mm Max Depth
Product Information
- : 5995907
- Chip Breaker: U
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0020
- Corner Radius (mm): 0.05
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0295
- Cutting Width (mm): 0.75
- Full Radius: No
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 32075
- Insert Style: GTMH
- Lead Angle: 0
- Manufacturer Grade: ZM3
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.0630
- Maximum Depth of Cut (mm): 1.60
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Maximum Depth of Cut Range (mm): 0.00 to 2.00
- Multi-Use Tool: No
- Overall Width (Inch): 1/8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Grooving Inserts
