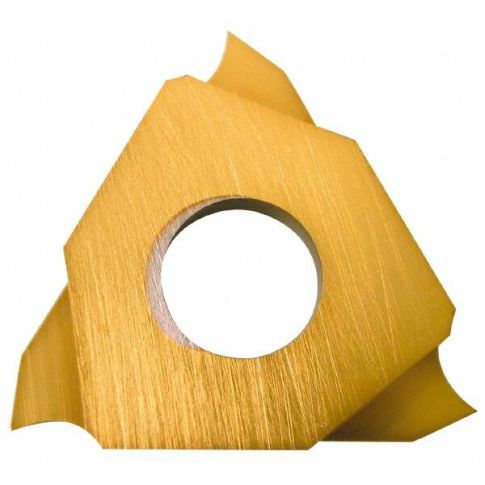

Grooving Insert: GTMH32250U ZM3, Solid Carbide MPN:5037502
Grooving Insert: GTMH32250U ZM3, Solid Carbide
Grooving Insert: GTMH32250U ZM3, Solid Carbide TiN Finish, Right Hand, 2.5 mm Cutting Width, 2.7 mm Max Depth
Product Information
- : 5037502
- Chip Breaker: U
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0020
- Corner Radius (mm): 0.05
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0984
- Cutting Width (mm): 2.50
- Full Radius: No
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 32250
- Insert Style: GTMH
- Lead Angle: 0
- Manufacturer Grade: ZM3
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.1063
- Maximum Depth of Cut (mm): 2.70
- Maximum Depth of Cut Range (Decimal Inch): 0.1000 to 0.1500
- Maximum Depth of Cut Range (mm): 2.00 to 3.00
- Multi-Use Tool: No
- Overall Width (Inch): 1/8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:47am UTC
Category: Grooving Inserts
