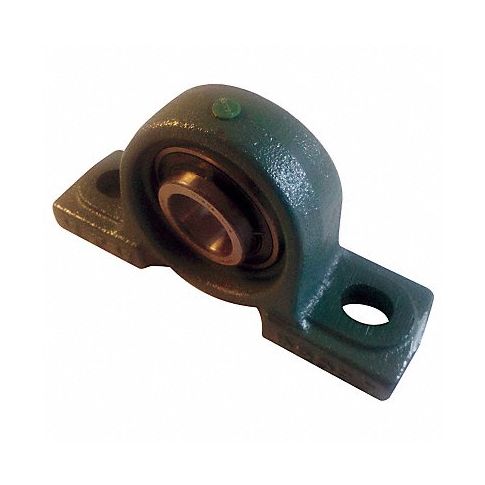

Pillow Block Brg 1 1/8 in Bore Cast Iron MPN:UCP206-102D1
Pillow Block Brg 1 1/8 in Bore Cast Iron
The pillow block bearing offers easy mounting for machines or equipment due to its incorporation of a housing containing spherical ball bearings with integral spacers atop, allowing precise alignment even under extreme angles; suitable where there are uni-directional loading moments occurring. Primarily used among industries involving heavy machinery needing strong support bearing capabilities or reduced vibration while in operation, such as farming, textile manufacturing or construction sites offering the benefit of being simple yet effective when dealing with misalignment issues thus adding value by promoting a smoother functioning environment for mechanisms needing solid foundations.
✓ Buy NTN item #UCP206-102D1 and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/8 in
- Bolt Hole Center-to-Center 4 3/4 in
- Mounting Surface to Shaft Center 1 11/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Standard Duty
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 9/32 in
- Overall Width 1 7/8 in
- Overall Length 6 1/2 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 4,400 lb
- Static Load Capacity 2,540 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCP206102D1
- MPN: UCP206-102D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:48am UTC
Category: Bearings
