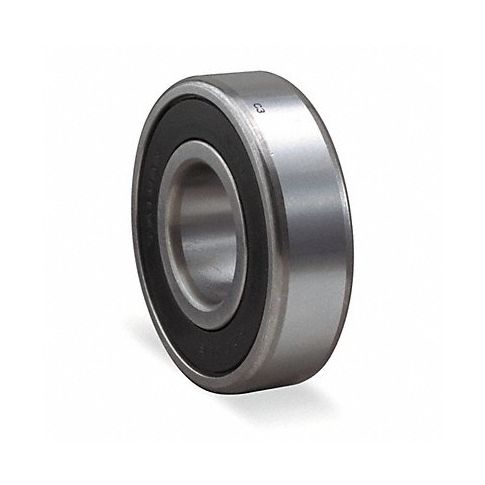

Radial Ball Brg 6210 50mm Bore Alloy Stl MPN:6210LLBC3/L627
Radial Ball Brg 6210 50mm Bore Alloy Stl
Experience smoother and quieter operation with our Radial Ball Bearing 6210 from Ntn! With a single-row alignment, this unmounted bearing provides superior performance in applications requiring minimal axial loads, such as conveyor systems, robotics, and textile machines. The double sealed design ensures maximum protection against contamination, while its 50mm bore diameter and 90mm outside diameter make it suitable for a wide range of industries. Improve the efficiency of your machinery with our high-quality radial ball bearing today!
Top product features:
- High precision and smooth operation: This radial ball bearing provides superior accuracy in movement and reduces friction, ensuring reliable performance even under heavy loads.
- Enhanced durability: The double sealed design helps to keep out dirt, dust, and moisture, preventing premature wear and prolonging the life of the bearing.
- Wide application: With a 50mm bore diameter and 90mm outside diameter, this radial ball bearing is suitable for various industries including agriculture, transportation, mining, and construction.
Top product applications:
- Conveyor systems: The single-row radial ball bearing helps to ensure smooth movement and minimum friction in conveyor rollers, enhancing efficiency and reducing wear and tear.
- Robotics: This precision-engineered bearing is perfect for use in robotic arms or joints, providing the accuracy needed for precise motion control while minimizing noise and vibrations.
- Textile machinery: The double sealed design helps to prevent dust, fiber, and lint buildup in spinning or weaving machinery, prolonging the lifespan of the equipment and reducing maintenance costs.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 50 mm
- Outside Dia. 90 mm
- Width 20 mm
- Seal Material Synthetic Rubber Molded to a Steel Plate
- Shield Material Rust-Resistant Metal
- Dynamic Load Capacity 7,900 lb
- Static Load Capacity 5,200 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Cage Material Pressed Steel
- Lubrication SRI#2 Grease
- Industry Number 6210LLBC3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: 6210LLBC3L627
- MPN: 6210LLBC3/L627
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Radial bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 9:47am UTC
Category: Bearings
