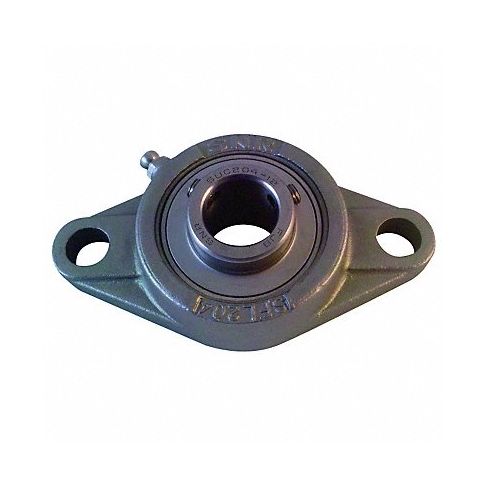

2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:SUCFL206-20

Discount: See in Cart
Free Shipping
In Stock
Brand: Ntn
Part #: SUCFL206-20
SKU
226-CXO-10A180
$349.99
2 Bolt Flng Brg Radial Ball 1 1/4in Bore

Provide an overview of Double Sided Tape Heavy Duty for various applications across multiple industries such as construction, automotive, electronics, etc.

⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #SUCFL206-20.

Technical Specifications

  • Item 2-Bolt Flange Bearing
  • Mounted Bearing Item 2-Bolt Flange Bearing
  • Bearing Insert Type Ball
  • Bore Dia. 1 1/4 in
  • Shaft Locking Type Set Screw
  • Bearing Housing Material Type Stainless Steel
  • Bearing Insert Material 440C Stainless Steel
  • Bolt Hole Center-to-Center 117 mm
  • Series Corrosion Resistant with USDA-H1 Grease
  • Bolt Size M14
  • Overall Height 40.2 mm
  • Overall Width 80 mm
  • Overall Length 141 mm
  • Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
  • Dynamic Load Capacity 3,400 lb
  • Static Load Capacity 2,580 lb
  • Temp. Range -4 Degrees to 248 Degrees F
  • Finish Chrome
  • Dimension A 18 mm
  • Dimension H 80 mm
  • Dimension J 117 mm
  • Dimension L 141 mm
  • Dimension N 16 mm
  • Dimension S 15.9 mm

Manufacturer Details

  • Manufacturer: NTN
  • Condensed Mfg Number: SUCFL20620
  • MPN: SUCFL206-20

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: CN
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8483204040
  • GDS Category Name: Flange Mount Bearings
  • GDS Family Name: Bearings
  • GDS Segment Name: Power Transmission
  • UNSPSC: 31171501
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Bearings
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Flanged bearings
  • UNSPSC Family ID: 17
  • UNSPSC Family Name: Bearings and bushings and wheels and gears
  • UNSPSC Segment ID: 31
  • UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 10:50am UTC Category: Bearings
