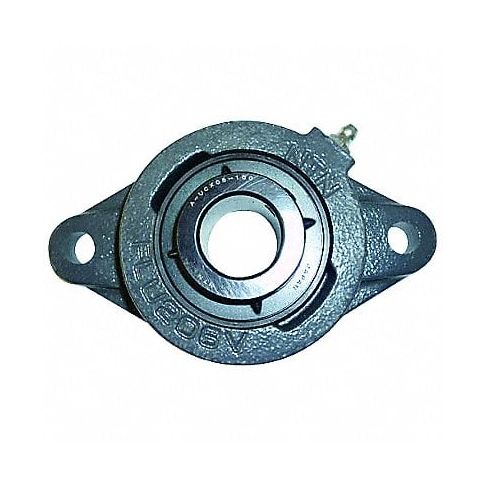

2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:UCFLU-1.1/4MFG1
2 Bolt Flng Brg Radial Ball 1 1/4in Bore
The two bolt flange radial ball bearing is an outstanding bearing solution used in various applications due to its durability, versatility, and ease of installation; it's suitable for use in diverse sectors such as agriculture, automotive and construction equipment industries delivering exceptional performance. Its unique design ensures smooth operation and maintaining reliability of machines while cutting on maintenance costs which makes it a top choice for professional technicians and engineers looking for cost-efficient solutions for their machinery needs.
Features cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series Standard Duty with Food Grade Solid Lubrication, Set Screw
- Bolt Size 7/16 in
- Overall Height 1 53/64 in
- Overall Width 3 25/32 in
- Overall Length 6 5/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,440 lb
- Temp. Range -10 Degrees to 95 Degrees C
- Finish Black Oxide
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU114MFG1
- MPN: UCFLU-1.1/4MFG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:59pm UTC
Category: Bearings
