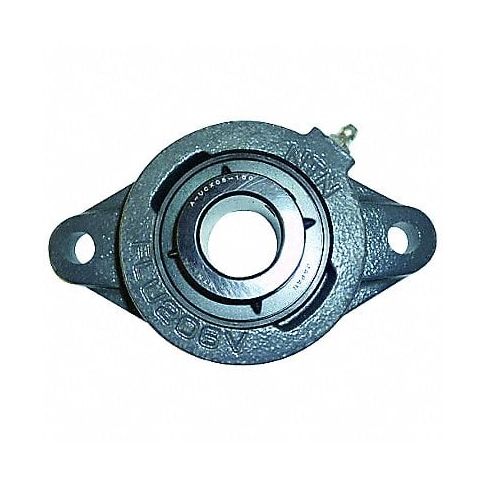

2 Bolt Flng Brg Radial Ball 1 3/4in Bore MPN:UCFLU-1.3/4MFG1
2 Bolt Flng Brg Radial Ball 1 3/4in Bore
Machine screws feature a tapered thread form that is optimized for the user to tap threads into pre-drilled holes with a single pass or use in pre-threaded components. The 1/4 -20 UNC size makes this screw suitable for general-purpose fastening in various materials ranging from plastics to metals with moderate thread stress, where precise alignment is crucial. With a flat head and slotted drive, this machine screw offers increased bearing surface which helps to distribute pressure more evenly over the heads of the fastener.
Features cast-iron housing. Elastomeric seal with flinger preserves lubricant and keeps contaminants out.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 27/32 in
- Series Standard Duty with Food Grade Solid Lubrication, Set Screw
- Bolt Size 7/16 in
- Overall Height 2 9/64 in
- Overall Width 4 3/8 in
- Overall Length 7 3/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 7,350 lb
- Static Load Capacity 4,590 lb
- Temp. Range -10 Degrees to 95 Degrees C
- Finish Black Oxide
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU134MFG1
- MPN: UCFLU-1.3/4MFG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:59pm UTC
