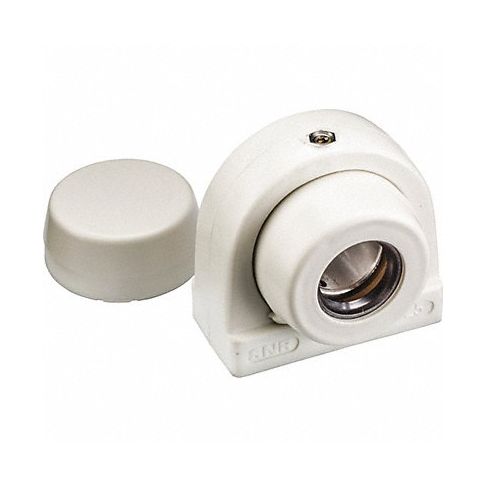

Pillow Block Brg 1 1/4 in Bore Polymer MPN:SUCTBL206-20CCFG1
Pillow Block Brg 1 1/4 in Bore Polymer
The pillow block bearing's polymer bore ensures lubrication, eliminating the need for external lubricants while providing precise and stable positioning - its ability to support heavy loads reduces noise, vibration and wear - this product excels in various industries ranging from automotive repair shops, food processing plants and material handling equipment where smooth operations without lubrication required.
Get NTN item #SUCTBL206-20CCFG1 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item Pillow Block Tapped Base Bearing
- Mounted Bearing Item Pillow Block Tapped Base Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Bolt Hole Center-to-Center 3 in
- Mounting Surface to Shaft Center 1 11/16 in
- Bearing Housing Material Type PBT
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series TBL-FG1
- Number of Bolts 2
- Bolt Size 7/16"-14 UNC
- Overall Height 3 5/16 in
- Overall Width 3 3/16 in
- Overall Length 4 in
- Bearing Lubrication FDA/USDA-H1 Solid Grease
- Dynamic Load Capacity 3,440 lb
- Static Load Capacity 2,590 lb
- Temp. Range 14 Degrees to 212 Degrees F
- Finish Unfinished
- Standards NSF H1 Registered
- Includes Open End Cap and Closed End Cap
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCTBL20620CCFG1
- MPN: SUCTBL206-20CCFG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
Category: Bearings
