Pillow Block Bearing 1 5/8 in Bore SS MPN:SUCPA209-26C0FG1

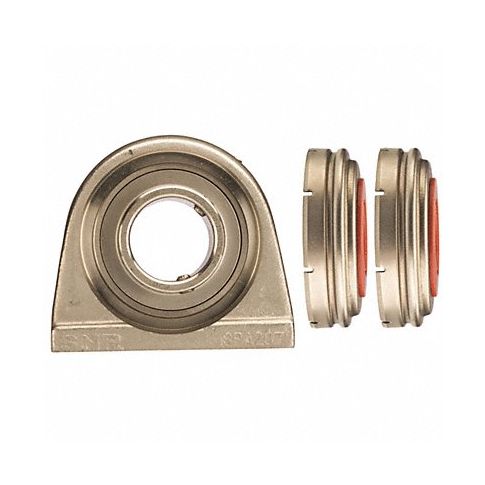

Pillow Block Bearing 1 5/8 in Bore SS
Look no further for superior performance in your industrial equipment with our Premium Quality Pillow Block Bearing. Designed to handle heavy-duty applications, this robust bearing is made from durable stainless steel and features a generous 1 5/8 bore diameter for easy installation on most shafts. The ribbed rubber seals ensure maximum protection against contaminants while providing smooth operation. Whether you're working in mining, manufacturing, automotive or agriculture, this pillow block bearing offers the superior strength and reliability your power tools need to get the job done. Say goodbye to inefficient bearings and hello to long-lasting performance with our Premium Quality Pillow Block Bearing.
Buy NTN item #SUCPA209-26C0FG1 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pillow Block Tapped Base Bearing
- Mounted Bearing Item Pillow Block Tapped Base Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 5/8 in
- Bolt Hole Center-to-Center 3 3/4 in
- Mounting Surface to Shaft Center 2 1/8 in
- Bearing Housing Material Type Stainless Steel
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series SA-FG1
- Number of Bolts 2
- Bolt Size M12
- Overall Height 4 1/4 in
- Overall Width 2 11/16 in
- Overall Length 5 in
- Bearing Lubrication FDA/USDA-H1 Solid Grease
- Dynamic Load Capacity 5,780 lb
- Static Load Capacity 4,680 lb
- Temp. Range 14 Degrees to 212 Degrees F
- Finish Unfinished
- Standards NSF H1 Registered
- Includes (2) Open End Caps
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCPA20926C0FG1
- MPN: SUCPA209-26C0FG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
