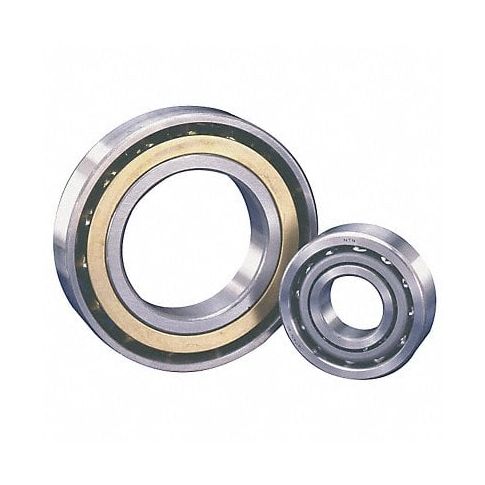

Angular Bearing 7305 40 Deg 25 mm Bore MPN:7305BG

The NTN® angular contact single-row radial ball bearings accommodate axial loads in 1 direction in addition to radial loads. Self-retaining unit with solid inner and outer rings and ball and cage assembly with pressed steel cage. 40° contact angle. Flush-ground universal mount.

Technical Specifications

• Item Angular Contact Ball Bearing
• Contact Angle (Degree) 40
• Bore Dia. 25 mm
• Outside Dia. 62 mm
• Width 17 mm
• Max. RPM 11,000 RPM
• Dynamic Load Capacity (Lb.) 5,500
• Dynamic Load Capacity (N) 24,465
• Static Load Capacity (Lb.) 3,300
• Static Load Capacity (N) 14,679
• ABEC Tolerance 1
• Temp. Range (F) -13 to 250
• Cage Material Pressed Steel

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: 7305BG
• MPN: 7305BG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105028
• GDS Category Name: Angular Contact and Precision Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
