4 Bolt Flange Brg Radial Ball 3/4in Bore MPN:SUCFPL204-12

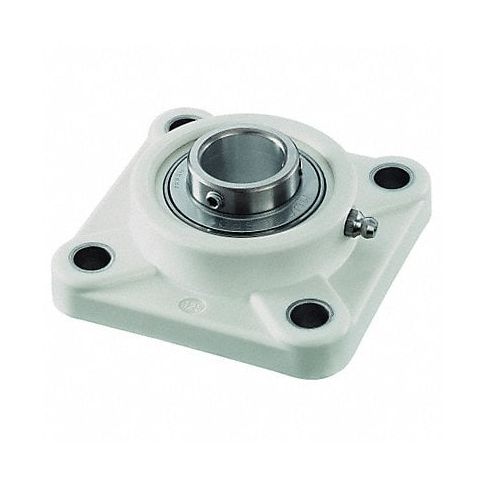

4 Bolt Flange Brg Radial Ball 3/4in Bore
This ball bearing is primarily used in industries such as automotive, construction, agriculture or even aerospace where components require precise rotational movements under tough conditions. Being a radial ball bearing with four bolt flange allows it to support loads that run parallel to the bearings axis offering extra stability against axial loading when working in high speed rotation applications such as engines, motors, turntables or gear boxes keeping equipment running smoothly and reducing energy consumption. The versatility of its 3/4inch bore size accommodates wide range of shaft sizes making it suitable for many other industries which require bearings to maintain the integrity of their systems.
Buy NTN item #SUCFPL204-12 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type PBT
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 63.5 mm
- Series Corrosion Resistant with USDA-H1 Grease
- Bolt Size M10
- Overall Height 86 mm
- Overall Width 36.3 mm
- Overall Length 86 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 2,450 lb
- Static Load Capacity 1,190 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish None
- Dimension A 3 3/8 in
- Dimension B 1 7/32 in
- Dimension E 2 1/2 in
- Dimension G 17/32 in
- Dimension S 7/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFPL20412
- MPN: SUCFPL204-12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
