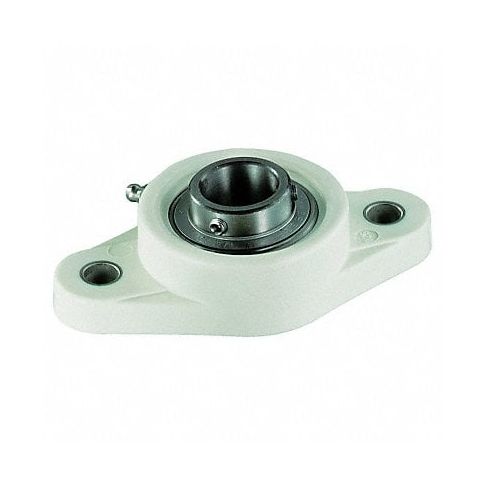

2 Bolt Flange Brg Radial Ball 3/4in Bore MPN:SUCNFL204-12
Designed for lasting performance even under harsh conditions, this robust radial ball bearing features two bolt flanges allowing simple mounting or dismantling vital to various industrial applications. Measuring in at 3/4 inches with a bore diameter of 1 inch ensures versatility in choice of fits making it suitable for use with multiple machines ranging from robotic machinery to automotive parts requiring precision movement at an affordable cost without compromise on durability or reliability factors adhered to. Its resilience is further enhanced by the incorporation of high-grade materials promoting resistance against corrosion thus promoting longevity while maintaining impeccably smooth operation time and again even under intense pressure or vibrations resulting in unmatched productivity at all times with minimal upkeep cost.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type PBT
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 90 mm
- Series Corrosion Resistant with USDA-H1 Grease
- Bolt Size M10
- Overall Height 64.8 mm
- Overall Width 33.7 mm
- Overall Length 130 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 2,450 lb
- Static Load Capacity 1,190 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish None
- Dimension A 4 7/16 in
- Dimension B 1 7/32 in
- Dimension E 3 35/64 in
- Dimension G 29/64 in
- Dimension L 2 1/2 in
- Dimension S 7/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCNFL20412
- MPN: SUCNFL204-12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
