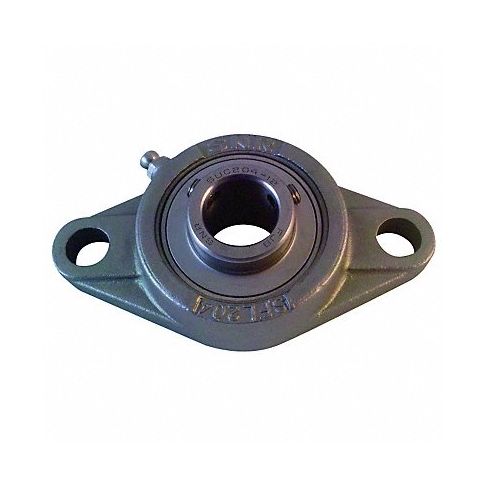

2 Bolt Flng Brg Radial 1 15/16in Bore MPN:SUCFL210-31
This versatile flanged radial bolt is a go-to bolting solution designed to meet the needs of diverse applications, particularly in heavy-duty industries. Its robust construction from high-grade materials provides long-lasting performance and enhanced durability under demanding conditions. The 1 15/16-inch bore ensures convenient fitting on a variety of machine elements, while the radial flange feature simplifies rotational engagement or disengagement. Furthermore, its enhanced torque retention capabilities reduce chances of loose bolts which could lead to safety hazards. A reliable bolting option suitable for various operations within manufacturing, automotive, heavy machinery, and other industries seeking strong securing options for transmission components.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 15/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 157 mm
- Series Corrosion Resistant with USDA-H1 Grease
- Bolt Size M16
- Overall Height 54.6 mm
- Overall Width 115 mm
- Overall Length 190 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 6,180 lb
- Static Load Capacity 5,330 lb
- Temp. Range -4 Degrees to 248 Degrees F
- Finish Chrome
- Dimension A 197 mm
- Dimension E 157 mm
- Dimension G 16 mm
- Dimension L 40 mm
- Dimension N 19 mm
- Dimension S 19 mm
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFL21031
- MPN: SUCFL210-31
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
