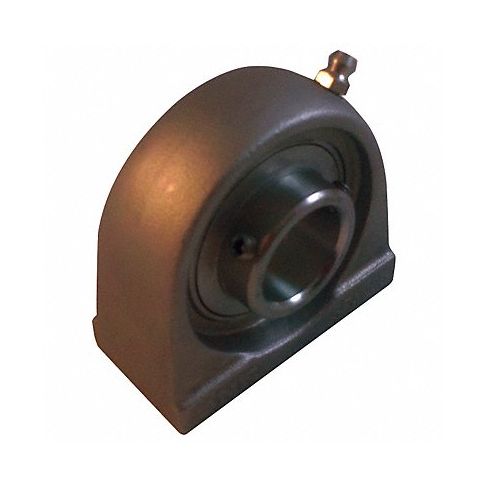

Pillow Block Bearing 1 in Bore SS MPN:SUCPA205-16
Pillow Block Bearing 1 in Bore SS
A stainless steel pillow block bearing featuring 1 inch bore size is an ideal component for high corrosion-resistant applications requiring load handling capacities especially at elevated or low temperatures environments commonly found in industries such as food and beverage processing plants, pharmaceutical manufacturing, chemical equipment setups amongst other sectors that need rust resistance materials reducing the risk of damage caused by moisture retention leading to longer functional lifespans thus being cost-effective bearings with enhanced operational reliability.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #SUCPA205-16.
Technical Specifications
- Item Pillow Block Tapped Base Bearing
- Mounted Bearing Item Pillow Block Tapped Base Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Bolt Hole Center-to-Center 50.8 mm
- Mounting Surface to Shaft Center 36.5 mm
- Bearing Housing Material Type Stainless Steel
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series Corrosion Resistant with USDA-H1 Grease
- Number of Bolts 2
- Bolt Size M10
- Overall Height 71 mm
- Overall Width 38 mm
- Overall Length 76 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 2,470 lb
- Static Load Capacity 1,800 lb
- Temp. Range -4 Degrees to 248 Degrees F
- Finish Chrome
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCPA20516
- MPN: SUCPA205-16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:16pm UTC
Category: Bearings
