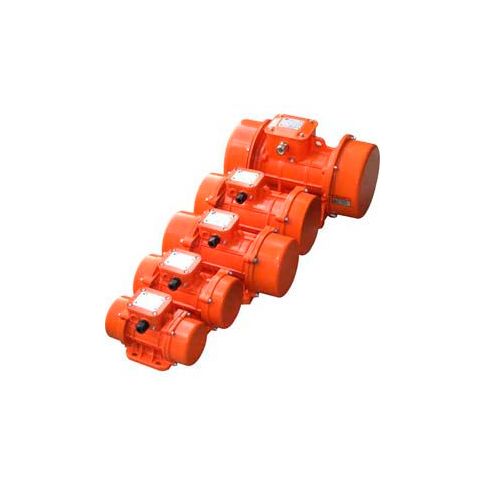

OLI Vibrators Standard Electric Vibrator MVE 1530/4 1800RPM 3 Phase 60HZ 230/460V 4Pole MVE 1530/4
OLI Vibrators Standard Electric Vibrator MVE 1530/4 1800RPM 3 Phase 60HZ 230/460V 4Pole MVE 1530/4
This item is NOT returnable.
This item is NOT cancellable.
OLI Vibrators Standard Electric Vibrator MVE 1530/4, 1800RPM, 3 Phase, 60HZ, 230/460V, 4Pole
The range of MVE-type External Electric Vibrators is the result of extensive experience in vibrating technology focused on a wide variety of industrial applications worldwide. Typical applications for the MVE-type External Electric Vibrators include: material flow aids used on bins and hoppers, power plants for screening, conveying, and feeding as well as variety of emptying, cleaning, detaching, compacting, and sorting applications. Many of the world's most notable manufacturers in industries from asphalt, agriculture, chemicals, concrete, construction, food processing, foundries, mining, recycling and water treatment trust OLI vibrators to meet their strict performance standards. Because of this, each motor is individually tested for mechanical and electrical performance before shipping to the customer. In addition to high quality standards, benefits of OLI Electric Vibrators are: long bearing life, low noise output, and low maintenance requirements. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
The range of MVE-type External Electric Vibrators is the result of extensive experience in vibrating technology focused on a wide variety of industrial applications worldwide. Typical applications for the MVE-type External Electric Vibrators include: material flow aids used on bins and hoppers, power plants for screening, conveying, and feeding as well as variety of emptying, cleaning, detaching, compacting, and sorting applications. Many of the world's most notable manufacturers in industries from asphalt, agriculture, chemicals, concrete, construction, food processing, foundries, mining, recycling and water treatment trust OLI vibrators to meet their strict performance standards. Because of this, each motor is individually tested for mechanical and electrical performance before shipping to the customer. In addition to high quality standards, benefits of OLI Electric Vibrators are: long bearing life, low noise output, and low maintenance requirements. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
Product Specifications
- BRANDOLI Vibrator
- CONSTRUCTIONAluminum Frame
- VOLTS230/460
- PHASE3
- UNBALANCE LBS. @ 50Hz24.67
- DESCRIPTIONStandard Electric Vibrator
- MANUFACTURERS PART NUMBERMVE 1530/4
- INPUT POWER HP @ 50Hz0.83
- MAX FORCE IN LBS. @ 60Hz1570
- MAX FORCE IN LBS. @ 50Hz1574
- UNBALANCE LBS. @ 60Hz17.08
- AMPS MAX Y @ 60Hz/460V1.41
- AMPS MAX Y @ 50Hz/400V1.32
- INPUT POWER HP @ 60Hz0.98
- II3 D TEMP CLASS C100
- Class II Div. 2 TEMP CLASS (T)T4
- LA/IN @ 60Hz3.2
- LA/IN @ 50Hz3
- RPM1800
- WEIGHT @ 60 Hz60
- WEIGHT @ 50 Hz60
- CABLE GLANDEM20
- MOTORAC
- POLES4
- HZ60
- AMPS MAX Y1.41
- WARRANTY2 Year
- CERTIFICATIONSCE, UL, CSA, Class 2 Div 2, And GOST Certifications
Additional Information
- UNSPSC: 23152105
- Brand: Oli Vibrator
- Package Quantity: 1
- Country of Origin: MT
- FOB Origin: GA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 16.00
- Package Width: 9.10
- Package Height: 9.10
- Package Weight: 60.00
Product info last updated on November 27, 2024 3:26pm UTC
Category: Vibrators
