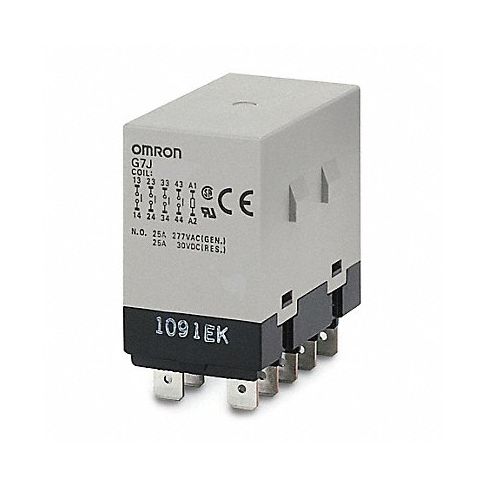

Enclosed Power Relay 10Pin 120VAC DPST MPN:G7J-2A2B-T-W1-AC100/120

Technical Specifications

• Item - Relay Enclosed Power Relay
• Coil Volts 100/120V AC
• AC Contact Rating - Relay 25A @ 240V (NO), 8A @ 240V (NC)
• DC Contact Rating - Relay 25A @ 28V
• Number of Pins - Relay 10
• Contact Form - Relay DPST-NC, DPST-NO
• Mounting - Relay Bracket
• Power Consumption - Relay 2.6 VA
• Contact Material Silver Alloy
• Electrical Connection - Power Relay 1/4 in Tab Terminal
• Body Height - Relay 2.01 in
• Body Width - Relay 2.03 in
• Body Depth - Relay 1.36 in
• Overall Height - Relay 2.24 in
• HP @ 120V 1-1/2
• HP @ 240V 3
• Hz - Electrical 50/60 Hz
• Features Includes Mfr. No. R99-04-FOR-G5F (1YAX1) Mounting Bracket, Miniature Hinge For Maximum Switching Power, No Contact Chattering for Momentary Voltage Drops Up to 50% of Rated Voltage
• Standards CSA Approved, UL

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: G7J2A2BTW1AC100120
• MPN: G7J-2A2B-T-W1-AC100/120

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Power Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121542
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 42
• UNSPSC Commodity Name: Solid state relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
