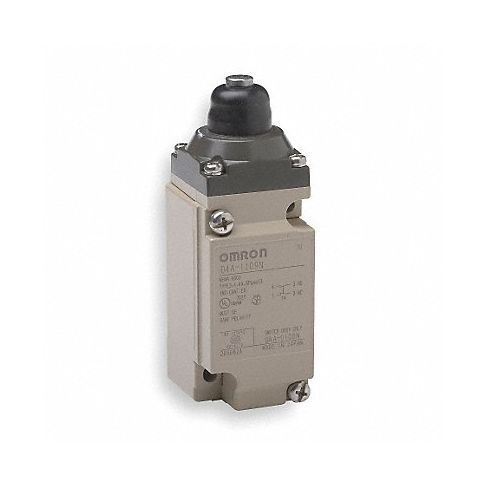

Heavy Duty Limit Switch MPN:D4A2509N

Technical Specifications

• Limit Switch Style Heavy Duty Limit Switch
• Basic Actuator Style - Limit Switch Plunger
• Actuator Style - Limit Switch Plunger
• Actuator Location - Limit Switch Top
• AC Contact Rating - Limit Switch 5A @ 600V
• DC Contact Rating - Limit Switch Not Rated
• Contact Form- Switches DPDT
• Body Height - Limit Switch 2.97 in
• Body Width - Limit Switch 1.65 in
• Body Depth - Limit Switch 1.73 in
• Boot Sealed Actuator - Limit Switch No
• Mounting - Limit Switch Surface
• Body Style - Limit Switch Miniature
• NEMA Rating 12, 13, 3, 4, 4X, 6P
• Wiring Entry 1/2 in NPT
• Electrical Connection Screw Terminals
• IP Rating 67
• Movement Top
• Travel Maximum Pre-Travel N/A, Minimum Over-Travel N/A
• Series D4A
• Operating Temp. Range -4 Degrees to 212 Degrees F
• Mounting Hole Pattern - Limit Switch 2 Hole Diagonal
• Mounting Hole Spacing - Limit Switch 2.34 in x 1.16 in
• Mounting Hole - Limit Switch (2) 0.20 in dia
• Stem Thread - Limit Switch No Stem
• Body Material Aluminum
• Operating Force 17.7 N-m
• Standards CSA, UL

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: D4A2509N
• MPN: D4A2509N

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509055
• GDS Category Name: Limit / Interlock Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121509
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Limit switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
