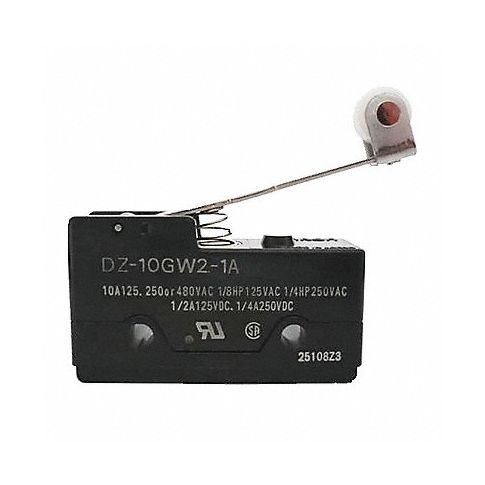

Snap Switch 10A DPDT Hinge Roller Lever MPN:DZ-10GW2-1A

This snap-action switch is functionally interchangeable with Unimax 2HB series switches.

Technical Specifications

• Snap Action Switch Type Industrial Snap Action Switch
• Basic Actuator Type - Snap Action Switch Lever
• Actuator Type - Snap Action Switch Hinge Roller, Lever
• Item Industrial Snap Action Switch
• AC Contact Rating - Snap Action Switch 10A @ 240V
• DC Contact Rating - Snap Action Switch 10A @ 30V
• Contact Form- Switches DPDT
• Lever Actuator Length - Snap Action Switch 1.91 in
• Height - Snap Action Switch 1.1 in
• Width - Snap Action Switch 1.94 in
• Depth - Snap Action Switch 0.69 in
• Electrical Connection - Snap Action Switch Solder Lug
• Mounting Dimension - Snap Action Switch 1.00 in Centers
• Number of Circuits - Snap Action Switch 2
• Watertight - Snap Action Switch No
• Series DZ
• Operating Force 7.52 oz
• Max. Pretravel 15.8 mm
• Release Force 1.48 oz
• Differential Travel 0.13 in
• Over Travel 0.047 in
• Operating Temp. Range -13 Degrees to 176 Degrees F
• Housing Material Phenolic
• Standards UL/ CSA

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: DZ10GW21A
• MPN: DZ-10GW2-1A

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509040
• GDS Category Name: Snap Action Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121505
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Snap switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
