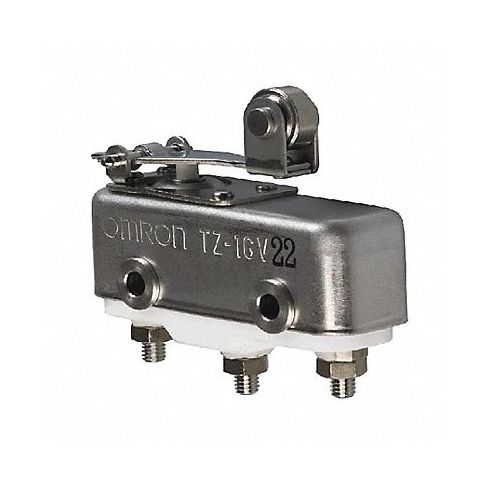

Swch 1A SPDT Shrt Hinge Roller Lever MPN:TZ-1GV22
Swch 1A SPDT Shrt Hinge Roller Lever
This snap-action switch is functionally interchangeable with Unimax 2HB series switches. It is designed for use in high-temperature environments and offers a max. ambient and operating temp. of 752°F (400°C).
Technical Specifications
- Snap Action Switch Type Industrial Snap Action Switch
- Basic Actuator Type - Snap Action Switch Lever
- Actuator Type - Snap Action Switch Hinge Roller, Lever, Short
- Item Industrial Snap Action Switch
- AC Contact Rating - Snap Action Switch 1A @ 240V
- DC Contact Rating - Snap Action Switch 1A @ 30V
- Contact Form- Switches SPDT
- Lever Actuator Length - Snap Action Switch 1.03 in
- Height - Snap Action Switch 1.26 in
- Width - Snap Action Switch 1.94 in
- Depth - Snap Action Switch 0.69 in
- Electrical Connection - Snap Action Switch Bolt
- Mounting Dimension - Snap Action Switch 1.00 in Centers
- Number of Circuits - Snap Action Switch 1
- Watertight - Snap Action Switch No
- Series TZ
- Operating Force 8.47 oz
- Max. Pretravel 0.059 in
- Release Force 1.2 oz
- Differential Travel 0.024 in
- Over Travel 0.075 in
- Operating Temp. Range -85 Degrees to 752 Degrees F
- Housing Material Phenolic
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: TZ1GV22
- MPN: TZ-1GV22
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Snap Action Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:27pm UTC
