H8124 Enclosed Power Relay 10Pin 120VAC 3PST MPN:G7J-3A1B-B-W1-AC100/120
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-6C985

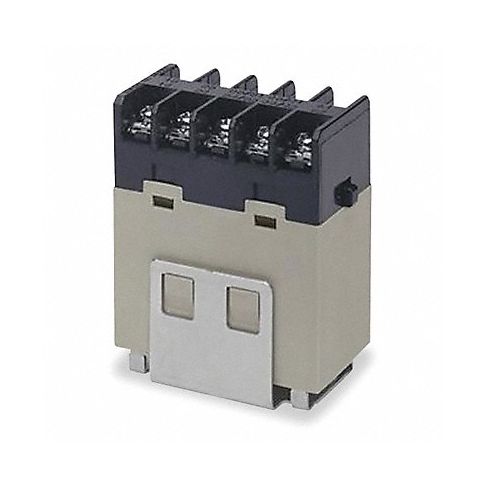

H8124 Enclosed Power Relay 10Pin 120VAC 3PST
Featuring top-mounted terminals, this enclosed power relay has a flange-type mounting bracket. Dielectric strength: 4000VAC at 1 min.
Technical Specifications
- Item - Relay Enclosed Power Relay
- Coil Volts 100/120V AC
- AC Contact Rating - Relay 25A @ 240V (NO), 8A @ 240V (NC)
- DC Contact Rating - Relay 25A @ 28V
- Number of Pins - Relay 10
- Contact Form - Relay 3PST-NO, SPST-NC
- Mounting - Relay Bracket
- Power Consumption - Relay 2.6 VA
- Contact Material Silver Alloy
- Electrical Connection - Power Relay Screw
- Body Height - Relay 2.52 in
- Body Width - Relay 1.36 in
- Body Depth - Relay 2.03 in
- Overall Height - Relay 2.52 in
- HP @ 120V 1-1/2
- HP @ 240V 3
- Hz - Electrical 50/60 Hz
- Features Miniature Hinge For Maximum Switching Power, No Contact Chattering for Momentary Voltage Drops Up to 50% of Rated Voltage
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: G7J3A1BBW1AC100120
- MPN: G7J-3A1B-B-W1-AC100/120
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Power Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Power relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:49am UTC
Category: Relays
