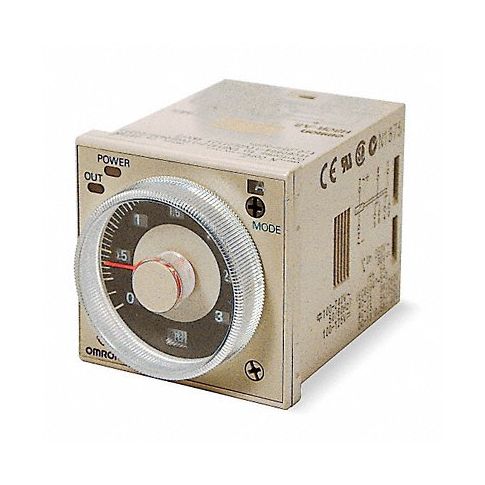

H7806 Time Delay Relay 100 to 240VAC 5A DPDT MPN:H3CR-A8AC100-240/DC100-125

Technical Specifications

• Item - Relay Multi-Function Timing Relay
• Function - Timing Relay Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot
• Coil Volts 100 to 125V DC, 100 to 240V AC
• AC Contact Rating - Relay 5A @ 240V
• DC Contact Rating - Relay 5A @ 30V
• Base Type - Plug In Relay Octal
• Number of Pins - Relay 8
• Mounting - Relay Plug In, Through Panel
• Contact Form - Relay DPDT
• Power Consumption - Relay 5.0 VA
• Adjustment Method - Timer Rotary Knob
• Min. Time Setting - Timer 0.05 sec
• Max. Time Setting - Timer 12 day 12 hr
• Status Indicator None
• Contact Material Silver Alloy
• Body Height - Relay 2.65 in
• Body Width - Relay 1.89 in
• Body Depth - Relay 1.89 in
• Overall Height - Relay 3.21 in
• Electrical Connection Socket
• Socket 1YAX4
• Hz - Electrical 50 Hz, 60 Hz
• Standards CE, cULus

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: H3CRA8AC100240DC100125
• MPN: H3CR-A8AC100-240/DC100-125

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ID
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490050
• GDS Category Name: Time-Delay Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121519
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Time relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
