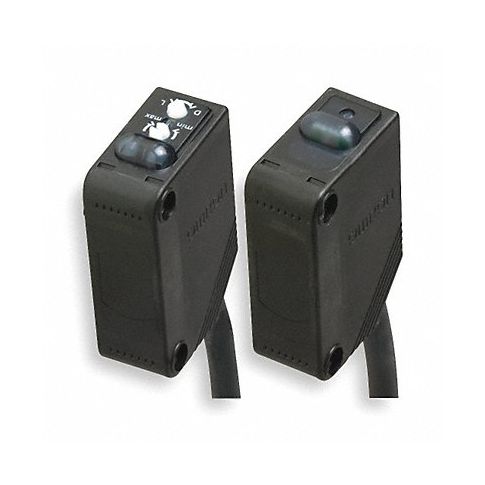

Photoelectric Sensor Rectangle Thru-Beam MPN:E3Z-T61K 2M

This photoelectric sensor features a built-in amplifier and high noise immunity. It also features a special coating to resist effects of harsh environments, and oil-resistant design to enable sensing in environments subject to oil mist.

Technical Specifications

• Style - Rectangular Photoelectric Sensor Rectangular Photoelectric Sensor
• Item Photoelectric Sensor
• Shape - Rectangular Photoelectric Sensor Rectangular
• Sensing Method - Rectangular Photoelectric Sensor Through Beam Set
• Power Requirement - Rectangular Photoelectric Sensor 12 to 24V DC
• Output Circuit Type - Rectangular Photoelectric Sensor NPN
• Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
• Max. Sensing Distance - Rectangular Photoelectric Sensor 15.0 m
• Electrical Connection - Rectangular Photoelectric Sensor 2m Cable
• Height - Rectangular Photoelectric Sensor 31 mm
• Width - Rectangular Photoelectric Sensor 7 mm
• Depth - Rectangular Photoelectric Sensor 20 mm
• Min. Object Size 12mm dia Opaque
• Max. Load Current 100 mA
• Response Time 1.0 msec
• IP Rating 67
• Body Material PBT
• Light Source Infrared LED
• Features Output Short Circuit And Power Supply Reverse Polarity Protection, Sensitivity Adjustment
• Operating Temp. Range -25 Degrees to 55 Degrees C
• Standards CE Approval

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: E3ZT61K2M
• MPN: E3Z-T61K 2M

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Rectangular Photoelectric Sensors
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121528
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 28
• UNSPSC Commodity Name: Photoelectric sensors
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
