Swch 15A SPDT Shrt Hinge Roller Lever MPN:Z-15GW22-B7-K
Swch 15A SPDT Shrt Hinge Roller Lever

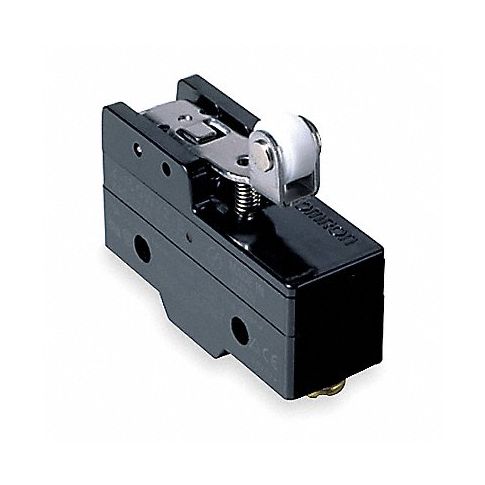

This snap action switch features a short hinge roller lever actuator and phenolic housing.
Technical Specifications
- Snap Action Switch Type Industrial Snap Action Switch
- Basic Actuator Type - Snap Action Switch Lever
- Actuator Type - Snap Action Switch Hinge Roller, Lever, Short
- Item Industrial Snap Action Switch
- AC Contact Rating - Snap Action Switch 15A @ 480V
- DC Contact Rating - Snap Action Switch 15A @ 14V
- Contact Form- Switches SPDT
- Lever Actuator Length - Snap Action Switch 1.05 in
- Height - Snap Action Switch 1.16 in
- Width - Snap Action Switch 1.94 in
- Depth - Snap Action Switch 0.69 in
- Electrical Connection - Snap Action Switch Screw
- Mounting Dimension - Snap Action Switch 1.03 in Centers
- Number of Circuits - Snap Action Switch 1
- Watertight - Snap Action Switch No
- Series Z
- Operating Force 5.6 oz
- Max. Pretravel 0.094 in
- Release Force 1.5 oz
- Differential Travel 0.02 in
- Over Travel 0.094 in
- Operating Temp. Range -25 Degrees to 80 Degrees C
- Housing Material Phenolic
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: Z15GW22B7K
- MPN: Z-15GW22-B7-K
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Snap Action Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
