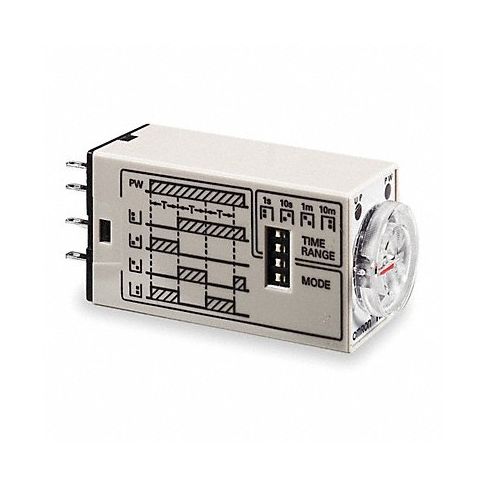

H7793 Time Delay Relay 120VAC 5A DPDT Square MPN:H3YN-2 AC100-120
H7793 Time Delay Relay 120VAC 5A DPDT Square
Experience the power of precision timing with Omron's H7793 Time Delay Relay. Ideal for a wide range of applications including lights, motors, and heating systems, this multi-function timing relay provides interval delay, on delay, and repeat cycle equal off/on times functionality. With 120V AC coil voltage, 5A @ 250V AC contact rating, and square base type for easy installation, the H7793 is the perfect solution for streamlining your operations. Improve productivity in your home or business with Omron's H7793 Time Delay Relay - buy today!
Top product features:
- Multi-function timing relay
- Interval delay, on delay, repeat cycle equal off/on times functionality
- Square base type for easy installation
Top product applications:
- Lights and fans control system in homes
- Timing motor operation at the manufacturing facilities
- Automated temperature control systems in agricultural farming
Buy Omron item #H3YN-2 AC100-120 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Multi-Function Timing Relay
- Function - Timing Relay Interval Delay, On Delay, Repeat Cycle Equal Off/On Times
- Coil Volts 120V AC
- AC Contact Rating - Relay 5A @ 250V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 8
- Mounting - Relay Plug In, Through Panel
- Contact Form - Relay DPDT
- Power Consumption - Relay 2.0 VA
- Adjustment Method - Timer Dip Switch, Rotary Knob
- Min. Time Setting - Timer 0.1 sec
- Max. Time Setting - Timer 10 min
- Status Indicator None
- Contact Material Silver Alloy
- Body Height - Relay 2.07 in
- Body Width - Relay 0.85 in
- Body Depth - Relay 1.1 in
- Overall Height - Relay 2.48 in
- Electrical Connection Socket
- Socket 4KN18
- Hz - Electrical 50 Hz, 60 Hz
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: H3YN2AC100120
- MPN: H3YN-2 AC100-120
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490050
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
