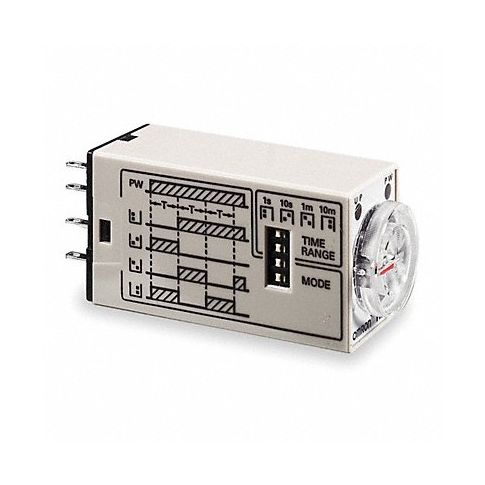

Time Delay Relay 120VAC 3A 4PDT MPN:H3YN-4 AC100-120

Technical Specifications

• Item - Relay Multi-Function Timing Relay
• Function - Timing Relay Interval Delay, On Delay, Repeat Cycle Equal Off/On Times
• Coil Volts 120V AC
• AC Contact Rating - Relay 3A @ 250V
• Base Type - Plug In Relay Square
• Number of Pins - Relay 14
• Mounting - Relay Plug In, Through Panel
• Contact Form - Relay 4PDT
• Power Consumption - Relay 2.0 VA
• Adjustment Method - Timer Dip Switch, Rotary Knob
• Min. Time Setting - Timer 0.1 sec
• Max. Time Setting - Timer 10 min
• Status Indicator None
• Contact Material Silver Alloy
• Body Height - Relay 2.07 in
• Body Width - Relay 0.85 in
• Body Depth - Relay 1.1 in
• Overall Height - Relay 2.48 in
• Electrical Connection Socket
• Socket 1EGP7, 1EGP8, 1EGR1, 2A584
• Hz - Electrical 50 Hz, 60 Hz

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: H3YN4AC100120
• MPN: H3YN-4 AC100-120

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ID
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490050
• GDS Category Name: Time-Delay Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121519
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Time relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
