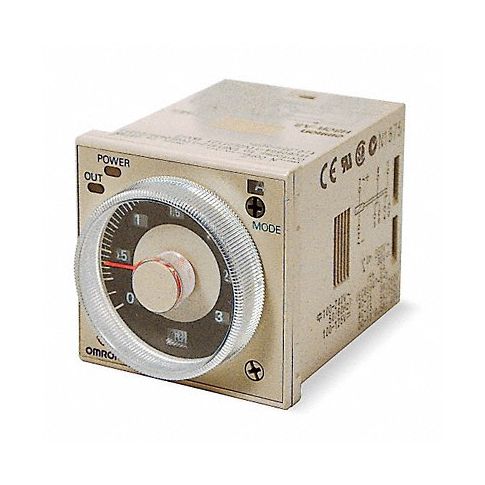

H7806 Time Delay Relay 24 to 48VAC/12 to 48VDC MPN:H3CR-A8AC24-48DC12-48
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-6C758
H7806 Time Delay Relay 24 to 48VAC/12 to 48VDC
Introducing the Omron H7806 Time Delay Relay, designed to provide precise timing control for a wide range of electrical devices and systems. This versatile relay offers an impressive 15 functions including Flicker On Start, Flicker Off Start, Interval, On Delay, One Shot, and more. The H7806 is available in both AC and DC versions, with a 24 to 48VAC/12 to 48VDC coil voltage rating, making it suitable for use in various industrial applications. Its durable construction and long-lasting performance make it an ideal solution for controlling lights, motors, pumps, and other equipment requiring precise timing control. The Omron H7806 Time Delay Relay is the perfect choice for any operation looking to increase efficiency, reduce energy consumption, and achieve optimal results.
Top product features:
- Multi-functionality: The H7806 offers 15 timing functions to choose from, making it suitable for various applications and enhancing its versatility in the process.
- Wide Voltage Range: With a coil voltage rating of 24-48VAC/12-48VDC, the H7806 can be used in diverse settings with different power supplies and configurations, boosting its appeal to a broad audience.
- High Contact Ratings: Capable of handling up to 5A at 240V (AC) and 5A at 30V (DC), the H7806 is suitable for controlling higher wattage loads with ease, making it ideal for demanding applications.
Top product applications:
- Lighting Control: The H7806 can be used to control the timing of lights in commercial or residential settings, ensuring that they are turned off or on at predetermined intervals for energy savings and cost efficiency.
- Machine Automation: In industrial settings, the H7806 can be employed to automate machinery by regulating the start-up or shut-down process through precise timing controls. This helps improve production rates, reduce waste, and lower expenses.
- Home Appliances: The H7806 can also be used to control home appliances such as coffee makers, irons, or ovens with customizable on/off timers for added convenience and comfort at home.
Buy Omron item #H3CR-A8AC24-48DC12-48 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Multi-Function Timing Relay
- Function - Timing Relay Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot
- Coil Volts 24 to 48V AC/12 to 48V DC
- AC Contact Rating - Relay 5A @ 240V
- DC Contact Rating - Relay 5A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In, Through Panel
- Contact Form - Relay DPDT
- Power Consumption - Relay 3.0 VA, 3.0 W
- Adjustment Method - Timer Rotary Knob
- Min. Time Setting - Timer 0.05 sec
- Max. Time Setting - Timer 12 day 12 hr
- Status Indicator None
- Contact Material Silver Alloy
- Body Height - Relay 2.65 in
- Body Width - Relay 1.89 in
- Body Depth - Relay 1.89 in
- Overall Height - Relay 3.21 in
- Electrical Connection Socket
- Socket 1EGP3, 1EGP5, 5X852
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, cULus
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: H3CRA8AC2448DC1248
- MPN: H3CR-A8AC24-48DC12-48
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536410020
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
