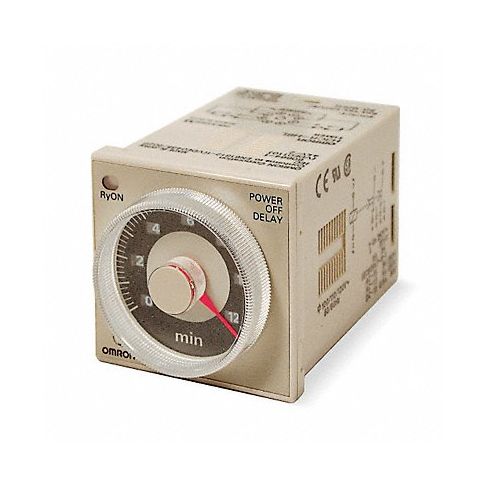

Time Delay Rlay 120VAC 5A DPDT 0.05 sec. MPN:H3CR-H8L-AC100120S
Time Delay Rlay 120VAC 5A DPDT 0.05 sec.
The Time Delay Rlay is a single function timing relay specifically designed for power off delay applications. This reliable and versatile relay can handle voltages of up to 120V AC and provides a coil rating of 5A @ 250V. The octal base type makes it easy to integrate into any circuit board, making this product ideal for use in electrical systems where power off delay timing is required. With its plug-in design, the Time Delay Rlay is user-friendly and can be easily replaced or upgraded when needed. This Omron product has a positive impact on our community of Service Disabled Veteran-Owned Business partners by supporting their efforts in providing quality goods and services to various industries.
Top product features:
- Power Off Delay Timing Function
- Coil Voltage Rating of 120V AC
- Octal Plug-in Relay Base Type
Top product applications:
- Power Off Delay Timing in Electrical Circuits
- Industrial Process Automation Controls
- Appliances with Timer Functions
Buy Omron item #H3CR-H8L-AC100120S to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Single Function Timing Relay
- Function - Timing Relay Power Off Delay
- Coil Volts 120V AC
- AC Contact Rating - Relay 5A @ 250V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In, Through Panel
- Contact Form - Relay DPDT
- Power Consumption - Relay 5.0 VA
- Adjustment Method - Timer Rotary Knob
- Min. Time Setting - Timer 0.05 sec
- Max. Time Setting - Timer 12 sec
- Contact Material Silver Alloy
- Body Height - Relay 2.82 in
- Body Width - Relay 1.89 in
- Body Depth - Relay 1.89 in
- Overall Height - Relay 3.58 in
- Electrical Connection Socket
- Socket 1EGP3, 1EGP5, 5X852
- Hz - Electrical 50 Hz, 60 Hz
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: H3CRH8LAC100120S
- MPN: H3CR-H8L-AC100120S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536410020
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
