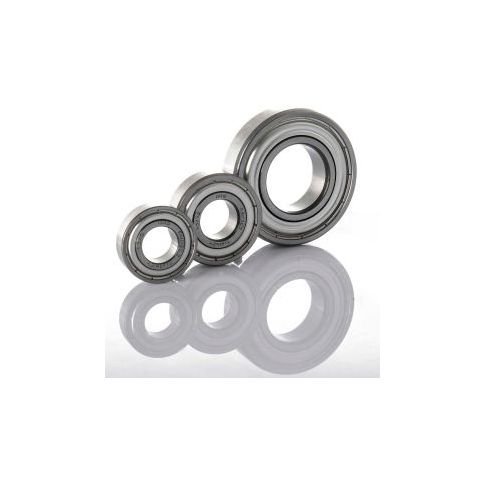

ORS 6021ZZ Deep Groove Ball Bearing - Double Shielded 105mm Bore 160mm OD 6021ZZ

Discount: See in Cart
Free Shipping
In Stock
Brand: Ors Bearings
Part #: 6021ZZ
SKU
281-65924B17
$136.00
ORS 6021ZZ Deep Groove Ball Bearing - Double Shielded 105mm Bore 160mm OD 6021ZZ

This item is NOT returnable.

This item is NOT cancellable.

ORS 6021ZZ Deep Groove Ball Bearing - Double Shielded 105mm Bore, 160mm OD

ORS Deep Groove Ball Bearings. Deep Grove Ball Bearings, often called Radial Ball Bearings, accommodate radial and axial loads, and are capable of operating at higher speeds. Due to these capabilities, they are the most widely used type of bearing. ORS Deep Groove Ball Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS is offering Double Sealed and Double Shielded bearings with Snap Ring for most sizes. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more. ORS bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile and many other equipment and machinery.

Product Specifications

  • BRANDORS
  • INTERNAL RADIAL CLEARANCEC3
  • BORE DIAMETER MILLIMETERS105
  • OUTER DIAMETER MILLIMETERS160
  • WIDTH MILLIMETERS26
  • PREPACKED GREASEPolyrex EM
  • CAGE MATERIALPressed steel
  • HOUSING CORNER RADIUS MAX (mm)2
  • STATIC LOAD (kN)65.77
  • DYNAMIC LOAD (kN)72.3
  • BEARING TYPEDouble Shielded
  • TOLERANCEISO Normal
  • HOUSING CORNER RADIUS MAX, SNAP RING SIDE (mm)0.5
  • MANUFACTURERS PART NUMBER6021ZZ
  • OPERATING TEMPERATURE- 20 / + 300°F
  • MAX SPEED / GREASE (RPM)3900
  • SHAFT FILLET CORNER RADIUS MAX (mm)2


Additional Information
  • UNSPSC: 31171504
  • Brand: ORS Bearings
  • Package Quantity: 1
  • Country of Origin: TR
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Length: 6.93
  • Package Width: 6.93
  • Package Height: 1.30
  • Package Weight: 3.75
