ORS 6210-2RS P53 Deep Groove Ball Bearing - Double Sealed ABEC 5 50mm Bore 90mm OD 6210-2RS-P53
ORS 6210-2RS P53 Deep Groove Ball Bearing - Double Sealed ABEC 5 50mm Bore 90mm OD 6210-2RS-P53
This item is NOT returnable.
This item is NOT cancellable.

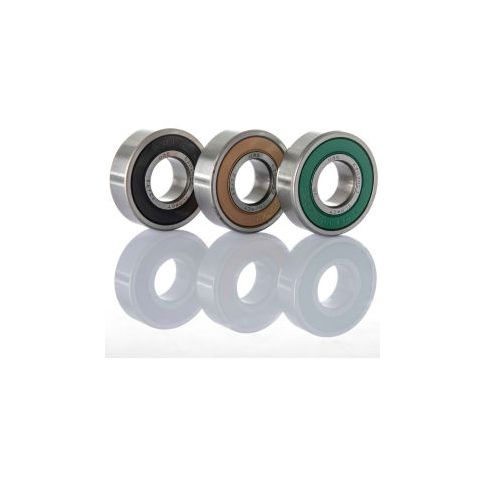

ORS 6210-2RS P53 Deep Groove Ball Bearing - Double Sealed ABEC 5 50mm Bore, 90mm OD
ORS, Deep Groove Ball Bearings, P53. Machine tools and other precision equipment require superior bearing performance; high rotational speed, high degree of running accuracy, minimum friction and heat generation as well as quiet and smooth running. ORS P53 (ABEC 5) Deep Groove Ball Bearings help optimize performance of these applications. ORS P53 bearings are used in machine tools, machine spindles, mills, high speed turbochargers, aerospace, robotics and health industrial machinery. Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more.
ORS, Deep Groove Ball Bearings, P53. Machine tools and other precision equipment require superior bearing performance; high rotational speed, high degree of running accuracy, minimum friction and heat generation as well as quiet and smooth running. ORS P53 (ABEC 5) Deep Groove Ball Bearings help optimize performance of these applications. ORS P53 bearings are used in machine tools, machine spindles, mills, high speed turbochargers, aerospace, robotics and health industrial machinery. Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more.
Product Specifications
- BRANDORS
- INTERNAL RADIAL CLEARANCEC3
- BORE DIAMETER MILLIMETERS50
- OUTER DIAMETER MILLIMETERS90
- WIDTH MILLIMETERS20
- PREPACKED GREASEPolyrex EM
- CAGE MATERIALPolyamid
- HOUSING CORNER RADIUS MAX (mm)1.1
- STATIC LOAD (kN)23.18
- DYNAMIC LOAD (kN)35.07
- BEARING TYPEDouble Sealed, ABEC 5
- TOLERANCEISO P5 (ABEC 5)
- MANUFACTURERS PART NUMBER6210-2RS P53
- OPERATING TEMPERATURE-20 / +250°F
- MAX SPEED / GREASE (RPM)7400
- SHAFT FILLET CORNER RADIUS MAX (mm)1.1
Additional Information
- UNSPSC: 31171504
- Brand: ORS Bearings
- Package Quantity: 1
- Country of Origin: TR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 3.70
- Package Width: 3.70
- Package Height: 0.91
- Package Weight: 1.09
Product info last updated on November 27, 2024 8:52pm UTC
Category: Bearings
