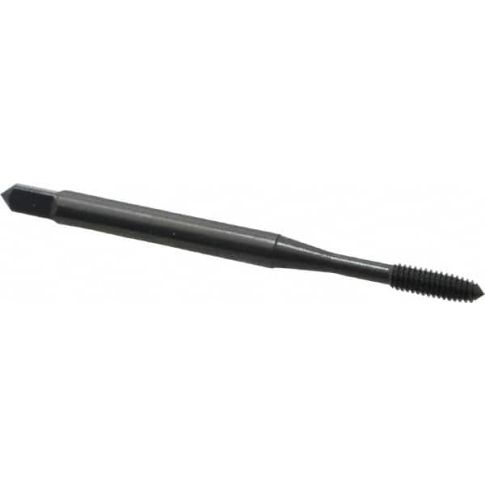

Thread Forming Tap: #4-48 UNF, Plug, Cobalt, Oxide Coated MPN:1400107101
Thread Forming Tap: #4-48 UNF, Plug, Cobalt, Oxide Coated
Thread Forming Tap: #4-48 UNF, Plug, Cobalt, Oxide Coated H3, Series HY-PRO NRT
Product Information
- : 1400107101
- Application: Through-Hole Threading
- Chamfer: Plug
- Chamfered Threads: 4-4.5P
- Class of Fit: 3B
- Coating/Finish: Steam Oxide
- Coolant Through: No
- Material: High-Speed Steel-CO
- Material Application: Steel; Non-Ferrous Metal
- Material Application Code: P; N
- Overall Length (Decimal Inch): 1.8750
- Overall Length (Inch): 1-7/8
- Series: 14001
- Shank Diameter (Decimal Inch): 0.1410
- Square Size (Decimal Inch): 0.1100
- Tapping Depth (Decimal Inch): 0.5590
- Thread Direction: Right Hand
- Thread Length (Decimal Inch): 0.2950
- Thread Limit: H3
- Thread Size (Inch): #4-48
- Thread Standard: UNF
- Trade Name: HY-PRO NRT
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: JP, Japan
- TAA Compliant: Yes
- UNSPSC: 23241600
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Thread Forming Taps
