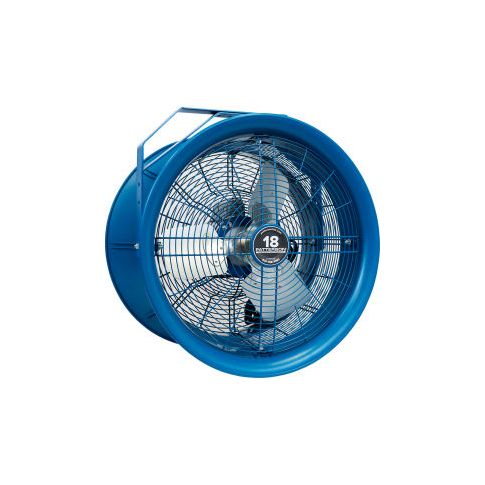

Patterson Fan 18 High Velocity Drum Fan w/ Yoke Mount 230/460V 3800 CFM 1/2 HP 3-Phase H18B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-22643B19
Patterson Fan 18 High Velocity Drum Fan w/ Yoke Mount 230/460V 3800 CFM 1/2 HP 3-Phase H18B
This is an industrial product, it was not designed for and is not intended for residential use. Orders for residential use will not be accepted.
Patterson H18B High Velocity Fan, 18", 230/460V, 3 PH w/ Yoke Mount
Patterson's 18 inch fan has an 80' air throw, ideal for pick module tunnels, longer trailer cooling, multiple workstation cooling and general air circulation. Built for performance, superior distance of air throw and durability.
Key Attributes of the HV Series:
Patterson H18B High Velocity Fan, 18", 230/460V, 3 PH w/ Yoke Mount
Patterson's 18 inch fan has an 80' air throw, ideal for pick module tunnels, longer trailer cooling, multiple workstation cooling and general air circulation. Built for performance, superior distance of air throw and durability.
Key Attributes of the HV Series:
- Direct Drive, Maintenance-Free Motor with Sealed Bearings (Totally Enclosed)
- Side-Vented Barrel Design Promotes Optimum Air Flow
- Fan Blades Engineered for Maximum Air Velocity and Efficiently Smooth Operation
- Powder Coated, Corrosion Resistant OSHA Compliant Recessed Finger Guards
- Deep Venturi Inlet/ Outlet Design of Barrel Creates Even Column of Non-disturbed Air Flow
Product Specifications
- BRANDPatterson Fan
- ASSEMBLYAssembled
- CFM HIGH3,800
- WIDTH INCHES24
- HEIGHT INCHES24
- DEPTH INCHES16
- FAN DIAMETER INCHES18
- WEIGHT LBS44
- MANUFACTURER'S PART NUMBERH18B
- COLOR FINISHBlue
- CONSTRUCTIONHigh Impact Polypropylene
- HORSEPOWER1/2
- FAN TYPEIndustrial
- RPM HIGH 1,725
- WATTS380
- PHASE3
- AMPS1.91
- HERTZ (HZ)60
- VOLTAGE230 / 460
- SPEEDS1
- MOTOR TYPETotally Enclosed Air Over (TEAO)
- DRIVE TYPEDirect Drive
- DECIBELS (DBA)71.2
- OSCILLATING/NON-OSCILLATINGNon-Oscillating
- LIMITED WARRANTY YEARS2
- APPROVALS OR CERTIFICATIONSOSHA Compliant
- DESCRIPTIONIndustrial Drum Fan
- INCLUDESYoke Mount Bracket
- MOUNT TYPEWall / Column / Pedestal
- POWER CORD TYPEN/A
- POWER CORD LENGTH FEETN/A
- MAX AMBIENT TEMPERATURE °F104
- BLADE TYPEGalvanized Aluminum
- BLADE QUANTITY3
- PACKAGE QUANTITY1
- DISTANCE AIR THROW FEET80'
- MODELB1922643
- COOLING SQ. FT.2,700
Additional Information
- UNSPSC: 40101602
- Brand: Patterson Fan Company Inc.
- Color: Blue
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: SC
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 25.30
- Package Width: 17.30
- Package Height: 26.00
- Package Weight: 44.00
