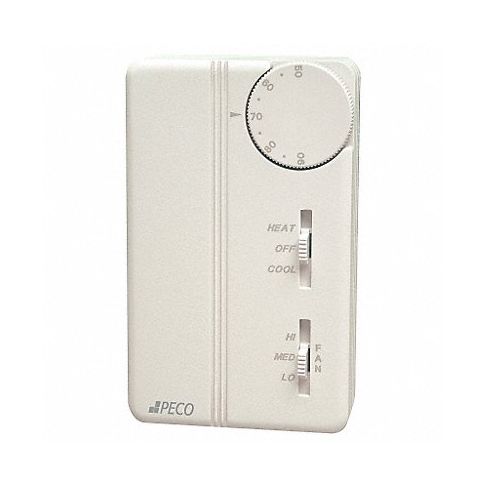

Fan Coil Tstat Analog 2 or 4 Pipe 24V MPN:TA167-007
Free Shipping
In Stock
Fan Coil Thermostat Analog 2 or 4 Pipe 24V from Peco is a versatile temperature control device specifically designed for HVAC systems. It provides precise temperature management under varying conditions through its ability to control heating and cooling valves, dampers, and fan systems with 0 to 10VDC proportional control. This thermostat offers manual or auto changeover switching capabilities depending on the application needs. Additionally, the independent fan circuitry enables smooth switching for up to three fan speeds. This thermostat is ideal for residential and commercial HVAC applications where precise temperature control is essential for optimal comfort and energy efficiency. The user-friendly interface makes it easy to program and adjust settings, ensuring maximum satisfaction and value for years to come.
Top product features:
- Provides precise temperature control under varying conditions
- Can provide 0 to 10VDC proportional control for HVAC systems
- Offers independent fan circuitry for smooth switching of up to three fan speeds
Top product applications:
- Commercial and residential HVAC systems for temperature control and regulation
- Large buildings, such as hotels, offices or warehouses, requiring precise heating and cooling controls
- Schools and universities campuses where a centralized temperature control system is required
Technical Specifications
- Item Fan Coil Thermostat
- Fan Coil Thermostat Type Analog, Electronic
- Thermostat Switch Type Triac
- Switch Action 0-10V DC
- Number of Switches 6
- Thermostat Control Range 50 Degrees to 90 Degrees F
- Differential (Deg. F) 1
- Thermostat Heating/Cooling Heating/Cooling
- Thermostat Number of Pipes 2 or 4
- Thermostat Number of Speeds 3
- Thermostat Item Fan Coil Thermostat
- Fan Switching Hi-Med-Low
- System Switching Heat-Off-Cool
- Sensor Type Thermistor
- Height (In.) 2 13/16 in
- Width (In.) 4 1/2 in
- Depth (In.) 1 in
- Special Information Low Voltage Thermostat is Electrically Isolated From The Line Voltage Fan Switching
- Uses Fan Coil, 2 Pipe or 4 Pipe
- Color White
- Display Analog
- Enclosure Type Rigid Vinyl
- Voltage 24V AC
- Full Load Amps @ 120VAC 5.8
- Full Load Amps @ 240VAC 2.9
- Locked Rotor Amps @ 120V 34.8
- Locked Rotor Amps @ 240V 17.4
- Rated For Pilot Duty 125VA
- Mounting Position Vertical
- Number of Stages 2
- Temp. Settings per Day Manual Adjust
- Includes Mounting Hardware, Installation Instructions
- Agency Compliance UL, cUL, CE
Manufacturer Details
- Manufacturer: Peco
- Condensed Mfg Number: TA167007
- MPN: TA167-007
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032100030
- GDS Category Name: Fan Coil Unit Thermostats
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:44pm UTC Category: HVAC Controls and Thermostats
