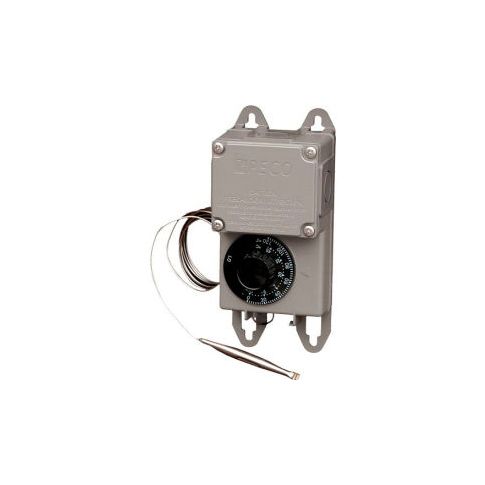

PECO Industrial Temperature Controller TRF115-005 Tmp. Range 0°-120°F Rmt. Bulb Nema 4X 68426
PECO Industrial Temperature Controller TRF115-005 Temperature Range 0°-120°F Remote Bulb with Nema 4X Enclosure
Features:
Features:
- T115 thermostat offers one control for Heating or Cooling
- Its NEMA 4X Enclosure Complies with N.E.C. Article 547
- The stainless steel remote sensing bulb and capillary provides rapid response to temperature change
- Featuring SPDT switches it delivers reliable temperature control for industrial, commercial, and agricultural applications
- 1 Heat, 1 Cool Stage
- 1 Year Warranty
Product Specifications
- BRANDPeco
- CAPILLARY LENGTH FEET5
- LEAD WIRE LENGTH FEET--
- LEAD WIRE LENGTH INCHES--
- BULB SIZE INCHES2-5/16
- TEMPERATURE - OPERATING RANGE °F0 to 120
- DIFFERENTIAL TEMPERATURE °F3
- TEMPERATURE CONTROL RANGE °F0 to 120
- VOLTAGE277 / 240 / 208 / 120 / 24
- AMPS @ 120V16 AMP FLA; 80A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty
- AMPS @ 208V13.2 AMP FLA; 66A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty
- AMPS @ 240V12 AMP FLA; 60A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty
- AMPS @ 277V110 AMP FLA; 50A LRA; 22 AMP Non-Inductive; 125 VA Pilot Duty
- NEMA RATING4X
- PHYSICAL DIMENSIONS3.1"W x 6.5"H x 2.5"D
- STAGESSingle
- SWITCH ACTIONSPDT
- POWER TYPEHardwired
- APPLICATIONHeat & Cool
- FOR USE WITHRefrigeration / Industrial / Agricultural
- BULB5 Foot Stainless Remote
- TYPEMechanical
- LISTING, RATING, CERTIFICATIONUL, CSA
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBERTRF115-005
Additional Information
- UPC: 879978000301
- UNSPSC: 41112205
- Brand: Peco
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: In Stock
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 7.12
- Package Width: 3.75
- Package Height: 3.62
- Package Weight: 0.08
