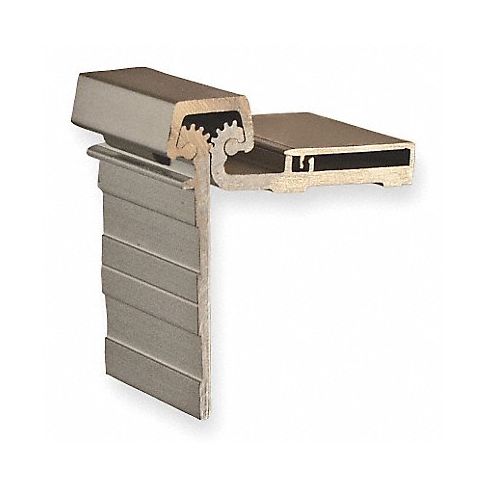

Geared Piano Hinge 2-1/4 in W MPN:CHS83HD1
The PEMKO Geared Piano Hinge is a versatile and durable hinge perfect for heavy-duty applications. Made from high-quality anodized aluminum, this hinge has a full range of motion up to 180 degrees and can withstand up to 540 pounds of weight. Its geared design ensures smooth operation, while the load-rating capability makes it ideal for commercial use. The PEMKO Geared Piano Hinge is easy to install and can seal gaps between doors and frames, preventing prying and keeping doors secure. With its rugged construction and reliable performance, this hinge is a top choice for anyone looking for a robust and reliable solution. Whether used in offices, schools or industrial settings, the PEMKO Geared Piano Hinge provides a sturdy and long-lasting option for all your door and lid needs.
Top product features:
- Geared design ensures smooth operation
- Load-rating capability suitable for heavy-duty applications
- Full-length channel cap seals gap between door and frame for security
Top product applications:
- Industrial and commercial doors
- Heavy-duty equipment panels
- Sagging or heavy doors that require additional support
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Aluminum
- Range of Motion 180 Degrees
- Finish Mill Aluminum
- Holes With
- Load Capacity 540.0 lb
- Orientation Non Handed
- Door Leaf Height 2 9/16 in
- Frame Leaf Height 2 9/16 in
- Door Leaf Width 1 7/8 in
- Frame Leaf Width 2 in
- Door Leaf Thickness 0.187 in
- Frame Leaf Thickness 0.187 in
- Required Door Thickness 1-3/4 in
- Length 6 ft 11 in
- Hardware Not Included
- Holes per Leaf 10
- Mounting Half Surface
- Standards ANSI/BHMA A156.26-2000, UL 76Y2, UL10C
- Overall Width 4 1/2 in
- UL Fire Rating UL10C
Manufacturer Details
- Manufacturer: Pemko
- Condensed Mfg Number: CHS83HD1
- MPN: CHS83HD1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
