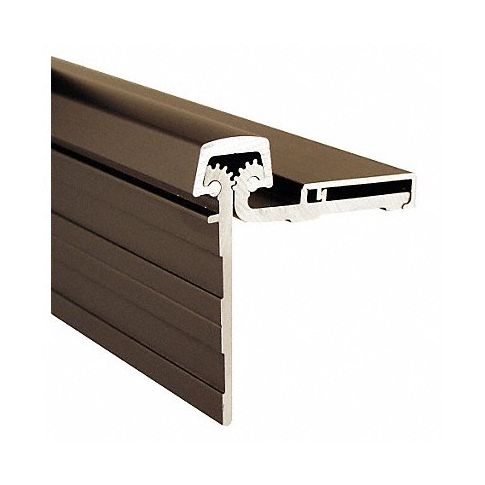

Geared Piano Hinge 2-1/4 in W MPN:DHS83HD1
Introducing the PEMKO Geared Piano Hinge - a robust hinge specifically designed for doors and lids that require high load capacity and smooth operation. Made from sturdy aluminum with 10 countersunk holes per leaf, this heavy-duty half surface hinge provides a seamless range of motion up to 180 degrees and distributes weight evenly between the door and frame. The full-length channel cap ensures a tight seal against unwanted gaps, providing enhanced security against prying, while the no-handed design eliminates any need for reorientation when installing or removing. Ideal for industrial applications such as machine guards and safety gates, this high-capacity hinge offers reliability, durability, and convenience in a sleek, functional design.
Top product features:
- Robust design provides high load capacity and smooth operation.
- Full-length channel cap seals gaps between door and frame for enhanced security.
- No-handed geared hinge eliminates need for reorientation when installing or removing, making it easy to use.
Top product applications:
- Use on sagging doors or lids to provide extra support and prevent damage.
- Secure doors against prying by sealing gaps between door and frame with a full-length channel cap.
- Suitable for industrial applications such as machine guards, providing high load capacity and smooth operation.
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Aluminum
- Range of Motion 180 Degrees
- Finish Dark Bronze
- Holes With
- Load Capacity 540.0 lb
- Orientation Non Handed
- Door Leaf Height 2 9/16 in
- Frame Leaf Height 2 9/16 in
- Door Leaf Width 1 7/8 in
- Frame Leaf Width 2 in
- Door Leaf Thickness 0.187 in
- Frame Leaf Thickness 0.187 in
- Required Door Thickness 1-3/4 in
- Length 6 ft 11 in
- Hardware Not Included
- Holes per Leaf 16
- Mounting Half Surface
- Standards ANSI/BHMA A156.26-2000, UL 76Y2, UL10C
- Overall Width 4 1/2 in
- UL Fire Rating UL10C
Manufacturer Details
- Manufacturer: Pemko
- Condensed Mfg Number: DHS83HD1
- MPN: DHS83HD1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
