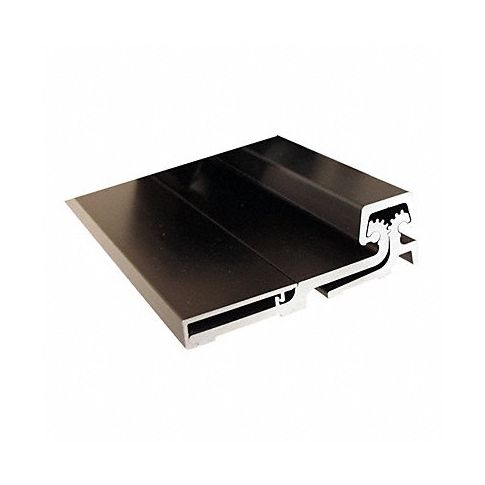

Geared Piano Hinge 2-7/8 in W MPN:DFS95HD1
Upgrade your doors or lids with our premium anodized aluminum PEMKO hinge! This heavy-duty load-rated hinge is designed for ruggedness and durability. Its no-handed, geared design distributes weight evenly on both the door and frame, making it ideal for sagging doors or lids. It also helps seal gaps between the door and frame to secure your space against prying with its full-length channel cap. Constructed of premium 6063-T6 aluminum alloy, this hinge has 10 countersunk holes per leaf for maximum strength and a 180-degree range of motion. Easy to install, our continuous hinge is perfect for a variety of applications and comes with a 540-lb capacity. Choose PEMKO for your next door or lid installation project and experience the quality and durability only PEMKO can provide.
Top product features:
- Rugged and durable design resists bending or breaking
- Distributes weight evenly on door and frame suitable for sagging doors or lids
- Seals gap between door and frame to secure space against prying full-length channel cap
Top product applications:
- Door hinge replacement and reinforcement upgrading existing doors for increased stability
- Cabinet and furniture assembly adding durable, secure hinges to drawers or cabinet doors
- Machine guarding and safety covers protecting equipment or machinery from unauthorized access or tampering
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Aluminum
- Range of Motion 180 Degrees
- Finish Dark Bronze
- Holes With
- Load Capacity 540.0 lb
- Orientation Non Handed
- Door Leaf Height 29/32 in
- Frame Leaf Height 29/32 in
- Door Leaf Width 1 3/8 in
- Frame Leaf Width 1 1/4 in
- Door Leaf Thickness 0.187 in
- Frame Leaf Thickness 0.187 in
- Required Door Thickness 1-3/4 in
- Length 7 ft 11 in
- Hardware Not Included
- Holes per Leaf 10
- Mounting Full Surface
- Standards ANSI/BHMA A156.26-2000, UL 76Y2, UL10C
- Overall Width 2 7/8 in
- UL Fire Rating UL10C
Manufacturer Details
- Manufacturer: Pemko
- Condensed Mfg Number: DFS95HD1
- MPN: DFS95HD1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
