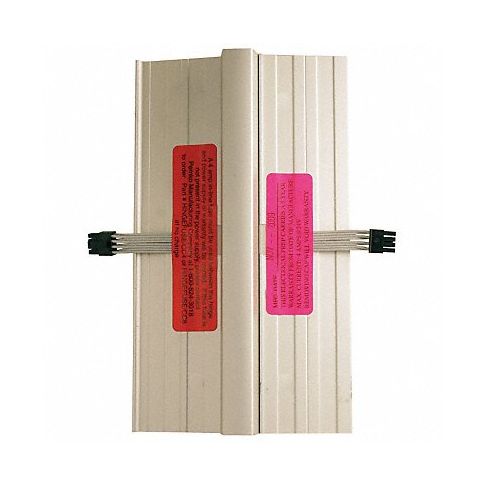

Electric Geared Piano Hinge Natural MPN:CFM83-SLF-HD1xSER8
Introducing Pemko's Electric Geared Piano Hinge - the perfect solution for heavy-duty door applications. This versatile hinge distributes weight evenly along the full length of the door and frame, reducing sag and misalignment while providing reinforcement to both the door and frame. The geared design ensures that both leaves operate with equal ease, minimizing effort required for opening large commercial or industrial doors. Additionally, its full-length channel cap seal provides excellent pry resistance and keeps fingers safe from injury by sealing the common gap between the door and frame. This premium hinge is made of high-quality aluminum for maximum durability and is ideal for electrified locksets and latches requiring continuous operation. Upgrade your doors with Pemko's Electric Geared Piano Hinge and enjoy reliable performance, improved security, and a long-lasting investment in your space.
Top product features:
- Piano Hinge Design Ensures both leaves operate identically and reduces effort required to open heavy doors.
- Continuous Operation Makes it ideal for use with electrified locksets and latches.
- Full-Length Channel Cap Seal Provides excellent pry resistance and improved security.
Top product applications:
- Heavy commercial and industrial door applications requiring continuous operation and improved security.
- Electrified locksets and latches for doors that need reinforcement and even weight distribution.
- Spaces where pry resistance and finger safety are important, such as in schools, hospitals, or offices.
Technical Specifications
- Item Electrified, Continuous Hinge
- Material Aluminum
- Finish Mill Aluminum
- Load Capacity 540.0 lb
- Holes With
- Holes per Leaf 20
- Ligature Resistant No
- Range of Motion 180 Degrees
- Orientation Non Handed
- Door Leaf Height 1 5/8 in
- Frame Leaf Height 1 5/8 in
- Door Leaf Width 25/32 in
- Frame Leaf Width 25/32 in
- Door Leaf Thickness 0.187 in
- Frame Leaf Thickness 0.187 in
- Required Door Thickness 1-3/4 in
- Includes Hardware
- Mounting Full Mortise
- Standards ANSI/BHMA, UL 10B, UL 10C, UBC 7.2
- Bearing Type Concealed
- Hardware Included
- UL Fire Rating UL10C
Manufacturer Details
- Manufacturer: Pemko
- Condensed Mfg Number: CFM83SLFHD1xSER8
- MPN: CFM83-SLF-HD1xSER8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Electrified Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on May 6, 2024 12:33pm UTC Category: Latches Hasps and Hinges
